Country of Origin
United States
Shipping Weight
0.15 pounds
Schedule B Code
8536.90.4000
Overall Length: 2.263 Inches
Overall Width: 0.656 Inches
Material Thickness: 0.060 Inches
Maximum Conductor Size Accommodated: 2 Awg
Electrical Insulation Feature: Insulating Sleeve
Mounting Method Style: Ring
Mounting Hole Diameter: 0.391 Inches
Mounting Tongue Width: 0.656 Inches
Mounting Facility Thickness: 0.060 Inches
Identification Code Color: Yellow
Basic Shape Style: Crimp
Conductor Accommodation Type: Recessed Barrel Single End
Material: Plastic Insulation
Material: Copper Overall Except Insulation
Surface Treatment: Tin Overall Except Insulation Single Layer
Product Type Features:

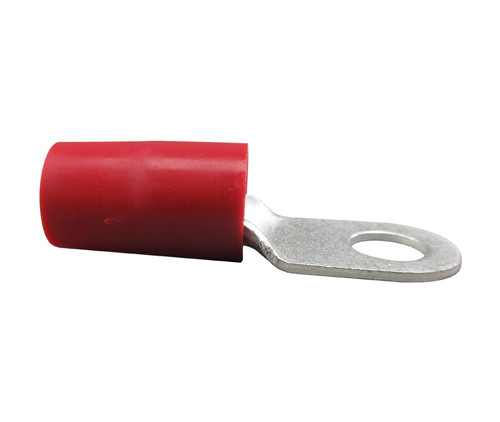

Terminal Shape: Ring Tongue
Receptacle Style: Straight
Body Style: TERMINYL
Barrel Type: Closed Barrel
Wire/Cable Type: Regular Wire
Insulation: Yes
Insulation Support: Insulation Support
Insulation Diameter (mm [in]): 11.89 [.468] Max.
Stud Diameter (mm [in]): 9.53 [0.375]
Stud Size: 3/8 [9.53]
Shape: RING-047
Heavy Duty: No
Material: Copper
Finish: Tin
Color: Red
Insulation Material: Nylon
Termination Features:
Wire/Cable Size (CMA): 52,600 – 83,700
Body Features:
Wire Range (mm [AWG]): 34.00-35.00² [2]
Tongue Material Thickness (mm [in]): 1.52 [0.060]
Contact Features:
Class: 2
Industry Standards:
Government/Industry Qualification: Yes
Government/Industry Part Number: MS25036-127
RoHS/ELV Compliance: RoHS compliant, ELV compliant
Lead Free Solder Processes: Not relevant for lead free process
RoHS/ELV Compliance History: Always was RoHS compliant
Packaging Features:
Packaging Method: Loose Piece
Other:
Brand: AMP
