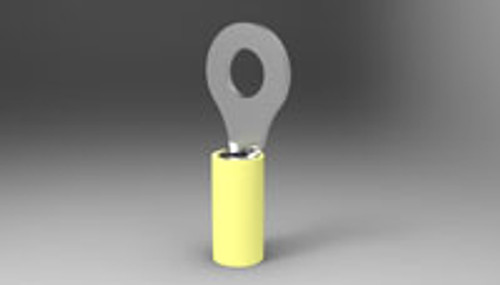

The Tyco AMP 320569 Terminal is a closed barrel, ring tongue terminal for wires AWG 12-10. It has a Pre-Insulated Diamond Grip (PIDG) body made from copper with a tin finish, and yellow nylon insulation.
Product Type Features:
Terminal Shape: Ring Tongue
Receptacle Style: Straight
Body Style: PIDG
Barrel Type: Closed Barrel
Wire/Cable Type: Regular Wire
Insulation: Yes
Insulation Support: Insulation Support
Insulation Diameter (mm [in]): 3.81-5.84 [.150-.230]
Stud Diameter (mm [in]): 6.73 [0.265]
Stud Size: 1/4 [M6]
Shape: RING-041
Heavy Duty: No
Material: Copper
Finish: Tin
Color: Yellow
Insulation Material: Nylon
Electrical Characteristics:
Voltage (VAC): 300
Termination Features:
Wire/Cable Size (CMA): 5,180 – 13,100
Body Features:
Wire Range (mm [AWG]): 3.00-6.00² [12-10]
Length (mm [in]): 35.58 [1.322]
Tongue Material Thickness (mm [in]): 1.02 [0.040]
Insulation Sleeve Material: Copper
Contact Features:
Class: 1 & 2
Industry Standards:
Government/Industry Qualification: Yes
Government/Industry Part Number: MS25036-157
RoHS/ELV Compliance: RoHS compliant, ELV compliant
Lead Free Solder Processes: Not relevant for lead free process
RoHS/ELV Compliance History: Always was RoHS compliant
Packaging Features:
Packaging Method: Loose Piece
Other:
Brand: AMP
