Country of Origin
United States
Shipping Weight
0.03 pounds
Manufacturer P/N
3-1437559-9
Schedule B Code
8536.50.9065

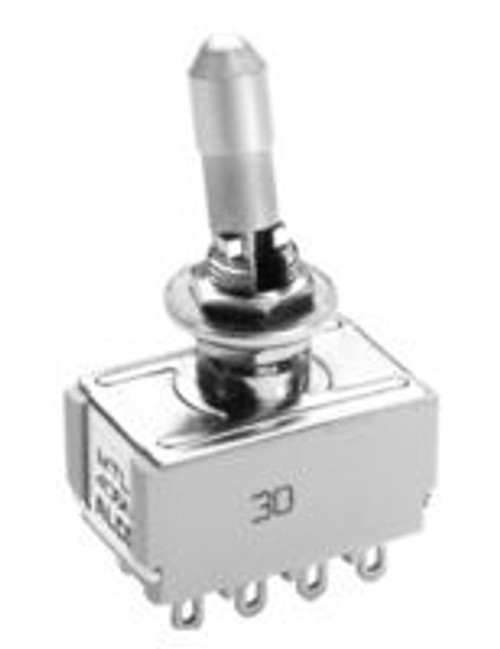

Body Style: Bushing Mount
Hazardous Locations/Environmental Protection: Dustproof
Overall Length: 0.512 Inches Nominal
Overall Height: 1.652 Inches Nominal
Overall Width: 0.701 Inches Nominal
Bushing Length: 0.315 Inches Nominal
Body Length: 0.512 Inches Nominal
Body Width: 0.701 Inches Nominal
Body Height: 0.452 Inches Nominal
Case Material: Plastic
Actuator Style: Round
Actuator Diameter: 0.217 Inches Nominal
Actuator Height: 0.650 Inches Nominal
Actuator Position-Action Relationship: Up Position Maintained And Down Position Maintained And Center Position Maintained
Actuator Position-Locking Relationship: Up Position Locked In And Down Position Locked In And Center Position No Locking Action
Actuator Color: Natural Single Actuator
Maximum Voltage Rating In Volts: 250.0 Ac And 28.0 Dc
End Item Identification: An/Paq-T1 12934
Mounting Surface To Terminal End Distance: 0.609 Inches Nominal
Inclosure Type: Fully Inclosed
Mounting Method: Threaded Bushing
Thread Quantity Per Inch: 40
Nominal Thread Size: 0.250 Inches
Nonpile-Up Contact Arrangement: 2 Pole, Double Throw, Three Positions Maintained Single Switch Unit
Contact Load Current Rating At Maximum Rated Voltage: 4.000 Amperes Resistive Dc And 3.000 Amperes Resistive Ac
Precious Material And Location: Terminals Gold And Contacts Silver
Thread Series Designator: Uns
Terminal Type And Quantity: 6 Tab, Solder Lug
