Country of Origin
United States
Shipping Weight
48 pounds
Manufacturer P/N
Spirax S6 75W-90
Schedule B Code
2710.19.3020
Ship Dimensions
13 x 13 x 17 inches

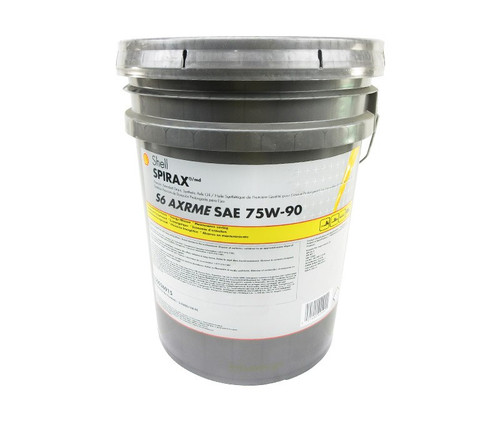

Shell Spirax ASX R SAE 75W-90 is a fuel-efficient axle fluid designed to provide ultimate protection to the latest heavy-duty axles that call for an API GL-5 type product. Specially formulated with synthetic base oils and additive technology that provide improved lubrication of the drive train, it lowers the operating temperature and helps promote longer life for the equipment. Shell Spirax ASX R SAE 75W-90 is capable of extended oil drain and is approved by several OEMs for their extended drain specifications. Standard industry and commercial fleet testing have demonstrated a fuel efficiency improvement of over 1% when compared to several products in the same application. Meets Roadranger SHAES 256 Rev C specifications with enhanced fuel efficiency.
APPLICATIONS:
Heavy duty axles and other applications where a 75W-90 API GL-5 extreme pressure (EP) mineral or synthetic gear oil is recommended. Note: For Eaton Roadranger Transmissions, use Spirax GSX SAE 50.
Spirax ASX 75W-90 is a unique fuel-efficient, long life gear oil designed to give the ultimate in protection for heavy duty axles. Specifically formulated synthetic base oils combined with an additive technology unique to Shell give improved lubrication of the drive train, lower operating temperatures and longer life for your equipment.
Greater efficiency and therefore lower fuel consumption - Enhanced frictional properties give lower power loss and lower operational temperatures resulting in increased mechanical efficiency.Longer oil drain capability - Spirax ASX 75W-90 is formulated with super high performance additives with exceptional oxidation resistance, plus lower operating temperatures ensure long-term gear and seal protection.Longer equipment life - Spirax ASX 75W-90 provides excellent protection against gear wear and pitting thereby preventing premature failure. Outstanding oxidation resistance also prevents damage to seals from deposit formation.Spirax ASX 75W-90 is Recognized by leading equipment manufacturers.APPROVALS
API GL-5, MT-1MAN 342 SLScania STO 1:0 (extended drain)ZF TE-MLDAF 05B-07A-12
TYPICAL CHARACTERISTICSProduct Code/ SAE Viscosity Grade - 437-016 / SAE J 306Density at 15ºC - Kg/m3 - ISO 12185 - 878Pour Point ºC - ISO 3016 - -42Flash Point COC ºC - ISO 2592 - 212Kinematic Viscosity, mm2/s @ 40 ºC - ISO 3104 - 115.0Kinematic Viscosity, mm2/s @ 100 ºC - ISO 3104 - 15.0Viscosity Index - ISO 2909 - 140Dynamic Viscosity mPa*s @ -40 ºC - ISO 9262 - 135,000Shear Stability, Viscosity after shearing, mm2/s@ 100 ºC - CEC L - 45-A-99, ISO 3104 - 14.5
Safety Data Sheet
