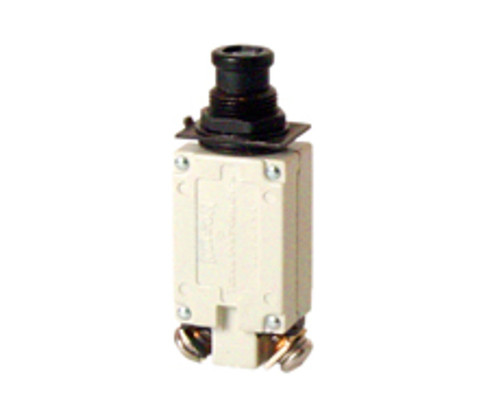

Klixon 7274-2-3/4 Circuit Breaker - 3/4 AMP
Click To Enlarge
Klixon 7274-2-3/4 Circuit Breaker - 3/4 AMPKlixon 7274-2-3/4 Circuit Breaker - 3/4 AMP
Customer Reviews

Klixon 7274-2-3/4 Circuit Breaker - 3/4 AMP

Part#: 7274-2-75
Our Price (Each): $18.00
   (Sold in increments of 1)

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  •

    Klixon 7274-2-3/4 Circuit Breaker - 3/4 AMP

    Approvals/References/Specification

  • Boeing Part Number: 454-0015-006
  • Pilatus Aircraft Part Number: 972.55.18.511
  • US Military Specification: MS26574-3/4
    Pilatus PN/Spec#: 972.55.18.511
  •
    Product Details
    Country of Origin: USA
    UOM : Each
    Pack Quantity : 1
    Size : 3/4 AMP
    Color Family : White
    Ship Dimensions : 4 x 2 x 1 inches
    Shipping Weight : 0.05 pounds
    Manufacturer P/N : 7274-2-3/4
    NSN : 5925-00-898-9361
    ECCN : EAR99
    Schedule B Code : 8536.20.0040
    Military Standard : MIL-C-5809
    Alt. P/Ns : MS26574-3/4 7274-2-.75
    Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
    Specifications
  • Body Style: Single Pole Type
  • Overall Length: 0.750 Inches Nominal
  • Overall Height: 2.192 Inches Nominal
  • Overall Width: 0.562 Inches Nominal
  • Bushing Length: 0.250 Inches Nominal
  • Body Length: 0.750 Inches Nominal
  • Body Width: 0.562 Inches Nominal
  • Case Material: Plastic
  • Center To Center Distance Between Terminals Parallel To Length: 0.703 Inches Nominal
  • Mounting Surface To Terminal End Distance: 1.707 Inches Nominal
  • Pole Quantity: 1
  • Arc Quenching Method: Air
  • Mounting Facility Type And Quantity: 1 Threaded Bushing
  • Storage Type: General Purpose Warehouse
  • Thread Quantity Per Inch: 32
  • Maximum Continuous Load Current Rating Per Pole: 750.0 Milliamperes Ac And 750.0 Milliamperes Dc
  • Operating Voltage Type And Rating Per Pole In Volts: 120.0 Ac And 28.0 Dc
  • Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 800.0 Ac And 800.0 Dc
  • Circuit Protection Type: Overcurrent
  • Trip Release Method: Thermal
  • Trip Release Characteristic: Time Delay
  • Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 145.0
  • Reset Method: Manual
  • Main Contact Tripping Mechanism Type: Trip Free
  • Manual Actuator Type And Quantity: 1 Push-Pull
  • Actuator Function: Trip-Reset
  • Internal Trip Release Configuration: Series Trip
  • Nominal Thread Size: 0.438 Inches
  • Trip Delay Time In Seconds Per Rated Continuous Current: 2.000 Minimum At 200 Pct And 20.000 Maximum At 200 Pct
  • Inclosure Protection Type For Which Designed: Explosion Proof And Moisture Resistant
  • Trip Release Ambient Temp Rating: 25.0 Deg Celsius Nominal
  • Frequency In Hertz: 400.0
  • Unpackaged Unit Weight: 1.500 Ounces
  • Thread Series Designator: Un
  • Terminal Type And Quantity: 2 Tab W/Screw
