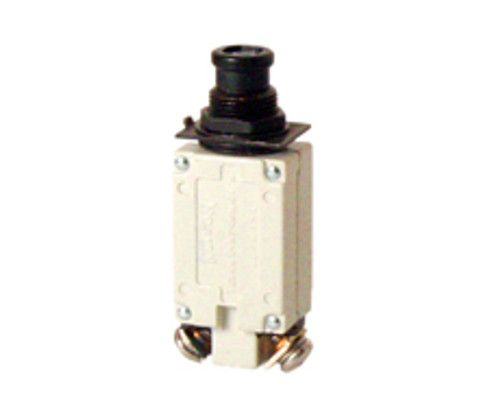

Klixon 7274-2-1-1/2 Circuit Breaker - 1-1/2 AMP
Click To Enlarge
Klixon 7274-2-1-1/2 Circuit Breaker - 1-1/2 AMPKlixon 7274-2-1-1/2 Circuit Breaker - 1-1/2 AMP
Customer Reviews

Klixon 7274-2-1-1/2 Circuit Breaker - 1-1/2 AMP

Part#: 7274-2-1-5
Our Price (Each): $19.87
   (Sold in increments of 1)

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
$15.00Add the Manufacturer's Certification:
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
    Klixon 7274-2-1-1/2 Circuit Breaker - 1-1/2 AMP


  • Honeywell International Part Number: 2068087-0701
  • Pilatus Aircraft Part Number: 972.55.18.513
  • US Military Specification: MS26574-1-1/2
    Pilatus PN/Spec#: 972.55.18.513
    Product Details
    Country of Origin: USA
    UOM : Each
    Pack Quantity : 1
    Size : 1-1/2 AMP
    Color Family : White
    Ship Dimensions : 2 x 1 x 1 inches
    Shipping Weight : 0.05 pounds
    Manufacturer P/N : 7274-2-1-1/2
    NSN : 5925-00-820-5347
    ECCN : EAR99
    Schedule B Code : 8536.20.0040
    Military Standard : MIL-C-5809
    Alt. P/Ns : MS26574-1-1/2 7274-2-1.5
    Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
  • Body Style: Single Pole Type
  • Bushing Length: 0.277 Inches Maximum
  • Body Length: 0.700 Inches Nominal
  • Body Width: 0.562 Inches Nominal
  • Case Material: Plastic
  • Center To Center Distance Between Terminals Parallel To Length: 0.593 Inches Nominal
  • Mounting Surface To Terminal End Distance: 1.302 Inches Nominal
  • Pole Quantity: 1
  • Mounting Facility Type And Quantity: 1 Threaded Bushing W/Panel Seal
  • Storage Type: General Purpose Warehouse
  • Thread Quantity Per Inch: 32
  • Maximum Continuous Load Current Rating Per Pole: 1.5 Amperes Ac Single Location And 1.5 Amperes Dc Single Location
  • Operating Voltage Type And Rating Per Pole In Volts: 120.0 Ac Single Location And 28.0 Dc Single Location
  • Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 800.0 Ac Single Location And 2000.0 Dc Single Location
  • Circuit Protection Type: Overcurrent Single Location
  • Trip Release Method: Thermal Single Location
  • Trip Release Characteristic: Time Delay Single Location
  • Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 145.0 Single Location
  • Reset Method: Manual
  • Main Contact Tripping Mechanism Type: Trip Free
  • Manual Actuator Type And Quantity: 1 Push-Pull
  • Actuator Function: Trip-Reset
  • Actuator Position Designation: At Pole One
  • Internal Trip Release Configuration: Series Trip Single Location
  • Nominal Thread Size: 0.438 Inches
  • Trip Delay Time In Seconds Per Rated Continuous Current: 2.000 Minimum At 200 Pct Single Location And 20.000 Maximum At 200 Pct Single Location
  • Inclosure Protection Type For Which Designed: Shockproof And Vibrationproof
  • Trip Release Ambient Temp Rating: 25.0 Deg Celsius Nominal Single Location
  • Frequency In Hertz: 400.0 Single Location
  • Unpackaged Unit Weight: 1.500 Ounces
  • Thread Series Designator: Un
  • Terminal Type And Quantity: 2 Tab W/Screw
