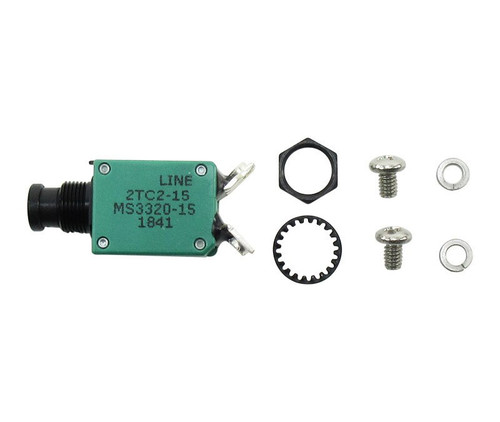

Klixon 2TC2-15 Circuit Breaker - 15 AMP
Click To Enlarge

Klixon 2TC2-15 Circuit Breaker - 15 AMP

Part#: 2TC2-15
Our Price (Each): $18.00

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SkyGeek Welcomes International Orders
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  •

    Klixon 2TC2-15 Circuit Breaker - 15 AMP

  • Boeing McDonnell Douglas Part Number: 5M1015-15
  • Northrop Grumman Part Number: GC885CJ15
  • US Military Specification: MS3320-15
  • ECE - Zodiac Aerospace Part Number: 2TC2-15SR645
  •
    Product Details
    Country of Origin: USA
    UOM : Each
    Color Family : Green
    Ship Dimensions : 2 x 1 x 1 inches
    Shipping Weight : 0.05 pounds
    Manufacturer P/N : 2TC2-15
    NSN : 5925-00-886-5436
    ECCN : 9A991.d
    Schedule B Code : 8536.20.0040
    Military Standard : MIL-C-5809
    Alt. P/Ns : MS3320-15
    Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
    Specifications
  •  Body Style:  Single Pole Type
  •  Bushing Length:  0.250 Inches Nominal
  •  Body Length:  0.750 Inches Nominal
  •  Body Width:  0.562 Inches Maximum
  •  Case Material:  Plastic
  •  Center To Center Distance Between Terminals Parallel To Length:  0.704 Inches Nominal
  •  Mounting Surface To Terminal End Distance:  1.218 Inches Maximum
  •  Pole Quantity:  1
  •  Mounting Facility Type And Quantity:  1 Threaded Bushing
  •  Thread Quantity Per Inch:  32
  •  Maximum Continuous Load Current Rating Per Pole:  15.0 Amperes Ac Single Location
  •  Operating Voltage Type And Rating Per Pole In Volts:  120.0 Ac Single Location
  •  Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps:  2500.0 Ac Single Location
  •  Circuit Protection Type:  Overcurrent Single Location
  •  Trip Release Method:  Thermal Single Location
  •  Trip Release Characteristic:  Time Delay Single Location
  •  Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent:  125.0 Single Location
  •  Reset Method:  Manual
  •  Main Contact Tripping Mechanism Type:  Trip Free
  •  Manual Actuator Type And Quantity:  1 Push-Pull
  •  Actuator Function:  Reset
  •  Actuator Position Designation:  At Pole One
  •  Internal Trip Release Configuration:  Series Trip Single Location
  •  Nominal Thread Size:  0.438 Inches
  •  Trip Delay Time In Seconds Per Rated Continuous Current:  2.800 Minimum At 200 Pct Single Location And 40.000 Maximum At 200 Pct Single Location
  •  Inclosure Protection Type For Which Designed:  General Purpose
  •  Trip Release Ambient Temp Rating:  25.0 Deg Celsius Nominal Single Location
  •  Frequency In Hertz:  400.0 Single Location
  •  Thread Series Designator:  Un
  •  Terminal Type And Quantity:  2 Screw
