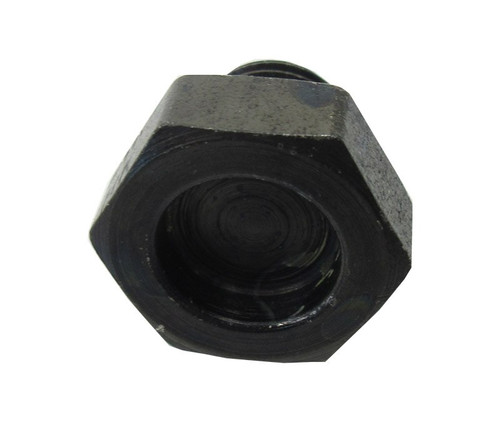

Aerospace Standard AS5169-04 Steel Plug, Machine Thread
Click To Enlarge
Aerospace Standard AS5169-04 Steel Plug, Machine ThreadAerospace Standard AS5169-04 Steel Plug, Machine Thread
Customer Reviews

Aerospace Standard AS5169-04 Steel Plug, Machine Thread

Part#: AS5169-04
Our Price (Each): $13.75
   (Sold in increments of 1)
Bulk Shop & Save
1 - 24$13.75 ea.
25 - 49$13.36 ea.
50 - 74$12.99 ea.
75 - 99$12.64 ea.
100+$12.31 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  •

  • Thread Class: 3A External
  • Thread Direction: Right-Hand External
  • Thread Length: 0.300 Inches Nominal External
  • Head Height: 0.250 Inches Nominal
  • Overall Length: 0.625 Inches Nominal
  • Connection Style: Plain
  • Body Core Diameter: 0.171 Inches Nominal
  • Core Depth: 0.296 Inches Minimum And 0.312 Inches Maximum
  • Bleeder Hole Center To Threaded End Distance: 0.157 Inches Minimum And 0.219 Inches Maximum
  • Bleeder Hole Diameter: 0.062 Inches Nominal
  • Nominal Thread Size: 0.438 Inches External
  • Seat Angle: 45.0 Degrees
  • Material: Steel Overall
  • Iii Surface Treatment: Cadmium Overall
  • Style Designator: Plug, Machine W/Bleeder Holes
  • Thread Series Designator: Unf External
  •
    Product Details
    UOM : Each
    Pack Quantity : 1
    Ship Dimensions : 1 x 1 x 1 inches
    Shipping Weight : 0 pounds
    Manufacturer P/N : AS5169-04
    NSN : 5365-00-287-0102
    ECCN : 9A991
    Schedule B Code : 7609.00.0000
    Military Standard : MIL-F-5509A
    Alt. P/Ns : AN814-4
