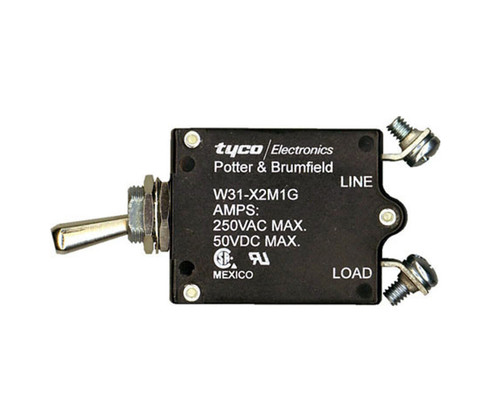

The Tyco Elcon W31X2M1G2 Circuit Breaker is a Potter and Brumfield Thermal Circuit Breaker with a toggle actuator and wire termination with 8-32 screws at a 90° angle. It carries a 2A current and 50 VDC, 250 VAC operating voltage. Has an interrupt capacity of 2000 A for 50 VDC and 1000 A for 240 VAC. Trips at 200% overload within 11 to 30 seconds.
W31-X2M1G-2 Alternate Part Numbers:
Manufacturer - 3-1393247-4
UOM : Each
Size : 2 AMP
Color Family : Black
Shipping Weight : 0.13 pounds
Manufacturer P/N :W31-X2M1G-2
NSN : 5925-01-308-3468
ECCN : EAR99
Schedule B Code : 8536.20.0040
Alt. P/Ns : W31-X2M1G-2
Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
Product Type Features:
Product Type: Circuit Breaker
Actuator Style: Toggle
Termination Type: 8-32 Screws 90° to Each Other (Screws and Washers Installed)
Current Rating (A): 25
Operating Voltage, Max.: 50 VDC, 250 VAC
Number of Poles: 1
Trip Time at 200%: 6 to 22 Seconds
Interrupt Capacity: 2,000 A @ 50 VDC or 1,000 A @ 240 VAC
Mounting Options: Two Hex Nuts/Lockwasher
Mounting Bushing: 15/32"-32 Threaded Bushing .320" Long Double "D", Silver Color
Toggle Color: Silver Metal, Round with Amp Rate Marking
Circuit Function: Series Trip
RoHS/ELV Compliance: RoHS/Not ELV Compliant
Lead Free Solder Processes: Not relevant for lead free process
RoHS/ELV Compliance History: Converted to comply with RoHS not ELV directives
