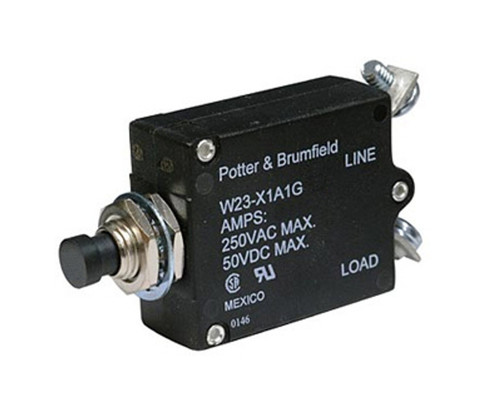

Potter & Brumfield W23-X1A1G-40 Push/Pull Circuit Breaker - 40 AMP
Click To Enlarge
Potter & Brumfield W23-X1A1G-40 Push/Pull Circuit Breaker - 40 AMPPotter & Brumfield W23-X1A1G-40 Push/Pull Circuit Breaker - 40 AMP
Customer Reviews

Potter & Brumfield W23-X1A1G-40 Push/Pull Circuit Breaker - 40 AMP

Part#: 7-1393246-4
Our Price (Each): $22.00
   (Sold in increments of 1)

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
$15.00Add the Manufacturer's Certification:
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
    The Tyco Elcon W23X1A1G40 Circuit Breaker is a Potter and Brumfield Thermal Circuit Breaker with a push/pull actuator and wire termination with 8-32 screws at a 90° angle. It carries a 40A current and 50 VDC, 250 VAC operating voltage. Has an interrupt capacity of 1000 A for 50 VDC or 240 VAC. Trips at 200% overload within 6 to 22 seconds.
    W23-X1A1G-40 Alternate Part Numbers:
    • Beech - CB-2340A

    • Piper - 454665

    • Manufacturer - 7-1393246-4

    Product Details
    UOM : Each
    Pack Quantity : 1
    Size : 40 AMP
    Color Family : Black
    Shipping Weight : 0.13 pounds
    Manufacturer P/N : W23-X1A1G-40
    ECCN : EAR99
    Schedule B Code : 8536.20.0040
    Alt. P/Ns : W23-X1A1G-40
    Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
    Product Type Features:
  • Product Type: Circuit Breaker
  • Series: W23
  • Actuator Style: Push/Pull
  • Button Color: Black with White Amp Rate Marking and White Trip Band
  • Termination Type: 8-32 Screws 90° to Each Other (Screws and Washers Installed)

  • Electrical Characteristics:
  • Current Rating (A): 40
  • Operating Voltage, Max.: 50 VDC, 250 VAC

  • Contact Features:
  • Number of Poles: 1
  • Trip Time at 200%: 6 to 22 Seconds
  • Interrupt Capacity: 1,000 A @ 50 VDC or 240 VAC
  • Mounting Options: Two Hex Nuts/Lockwasher
  • Mounting Bushing: 3/8"-24 Threaded Bushing .375" [9.53 mm] Long, Silver Color

  • Configuration Features:
  • Circuit Function: Series Trip

  • Industry Standards:
  • RoHS/ELV Compliance: RoHS/Not ELV Compliant
  • Lead Free Solder Processes: Not relevant for lead free process
  • RoHS/ELV Compliance History: Converted to comply with RoHS not ELV directives
  • Approved Standards: UL Recognized, CSA Certified

  • Other:
  • Brand: Potter & Brumfield
