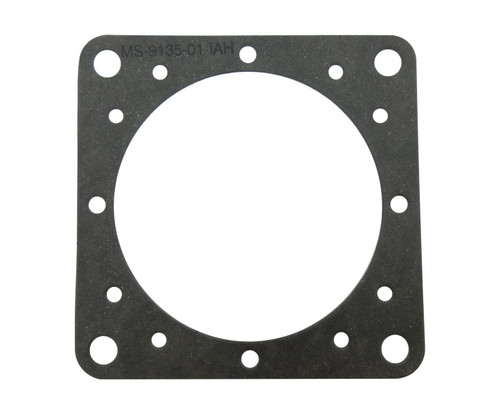

Cross-Sectional Shape Style: Solid Single Or Composition
Hole Diameter: 0.344 Inches Nominal
Overall Length: 4.224 Inches Nominal
Overall Width: 4.224 Inches Nominal
Aperture Diameter: 3.344 Inches Nominal
Outside Corner Radius: 0.344 Inches Nominal
Center To Center Distance Between Bolt Holes Along Width: 3.536 Inches Nominal
Center To Center Distance Between Bolt Holes Along Length: 3.536 Inches Nominal
Cross-Sectional Thickness: 0.014 Inches Minimum And 0.021 Inches Maximum
Material: Asbestos Overall And Rubber Synthetic Overall
Material Document And Classification: Ams 3232 Fed Spec All Material Responses Overall
FSC Application Data: Controls,Quadrant,Engine
Pratt & Whitney PN/Spec#:3010462
Aeronautical Standard PN/Spec#:AN4044-1
Country of Origin: United States
UOM : Each
Pack Quantity : 1
Color Family : Gray
Shipping Weight : 0 pounds
Manufacturer P/N :MS9135-01
NSN : 5330-00-237-5653
ECCN : EAR99
