Approvals and Conformities
NSN
5330-01-226-0134
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
White
Manufacturer P/N
MS28782-23
Schedule B Code
3926.90.4500
Pack Quantity
1
Ship Dimensions
2 x 2 x 0 inches
Series
MS28782
Nominal Inner Diameter
1.25"
Thickness
MAX: 0.029" / MIN: 0.025"
Width
MAX: 0.122" / MIN: 0.12"
Retainer Gap
MAX: 0.093" / MIN: 0.047"
Color
White
Material
Teflon (PTFE)

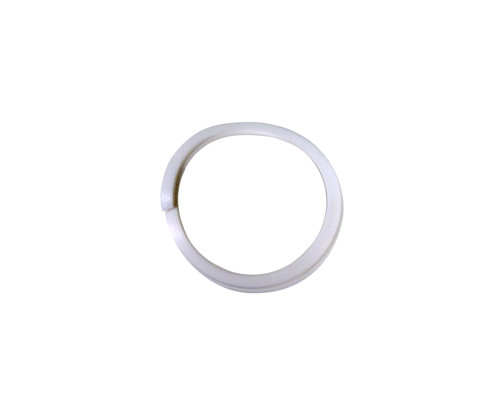

Military Standard MS28782-23 Packing Retainer, Back-up Ring - Teflon
- Nominal Inner Diameter: 1.25"
- Thickness: MAX: 0.029" / MIN: 0.025"
- Width: MAX: 0.122" / MIN: 0.12"
- Retainer Gap: MAX: 0.093" / MIN: 0.047"
