Country of Origin
United States
Shipping Weight
0.07 pounds
Manufacturer P/N

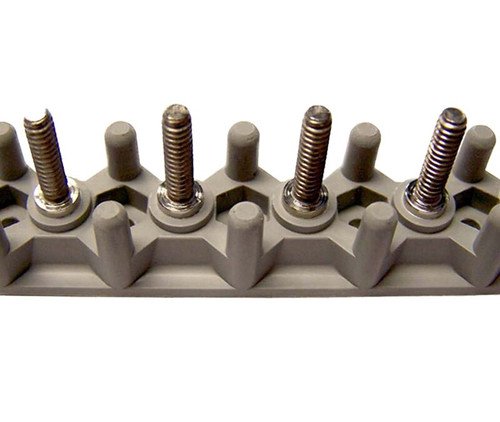

MS27212-1-9
Schedule B Code
8536.90.4000
Ship Dimensions
6 x 1 x 1 inches
Material
MIL-P-19833 Plastic
Mounting Hole Diameter: 0.115 Inches Body Style: Barrier Standoff Terminal Row Quantity: 1 Center To Center Distance Between Terminals: 0.594 Inches Board Construction: Hollow Construction Without Insulated Strip Center To Center Distance Between Mounting Facilities Parallel To Length: 0.594 Inches Distance From Bottom Edge Of Terminal Board To Center Of Mounting Hole: 0.344 Inches Distance From Left Edge Of Terminal Board To Center Of First Mounting Facility: 0.218 Inches Board Overall Length: 5.267 Inches Board Overall Width: 0.688 Inches Board Overall Height: 0.953 Inches Board Height Excluding Terminals: 0.580 Inches Base Thickness: 0.275 Inches Mounting Facility Type And Quantity: 10 Unthreaded Hole Nonfeedthru Terminal Type: 597 Single Nonfeedthru Terminal Quantity: 9 Single Terminal Pattern Arrangement: Single Row Terminal Design: Nonfeedthru Material: Steel Comp 303 Terminals Material: Plastic Diallyl Phthalate Board And Glass Fiber Board Material Document And Classification: Qq-S-763,Cond A Fed Spec Single Material Response Terminals Material Document And Classification: MIL-P-19833 Mil Spec All Material Responses Board
