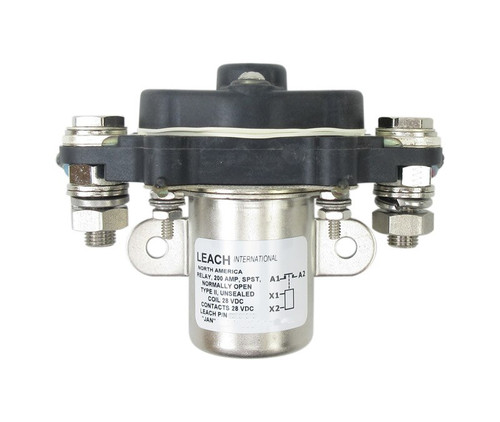

Military Standard MS24171-D2 Relay, Electromagnetic
Click To Enlarge
Military Standard MS24171-D2 Relay, ElectromagneticMilitary Standard MS24171-D2 Relay, ElectromagneticMilitary Standard MS24171-D2 Relay, ElectromagneticMilitary Standard MS24171-D2 Relay, ElectromagneticMilitary Standard MS24171-D2 Relay, Electromagnetic
Customer Reviews

Military Standard MS24171-D2 Relay, Electromagnetic

Part#: MS24171-D2
Our Price (Each): $214.65
   (Sold in increments of 1)
Bulk Shop & Save
1 - 5$214.65 ea.
6 - 11$208.69 ea.
12 - 23$203.05 ea.
24 - 35$197.70 ea.
36+$192.63 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  • Shop All Related:



  • Overall Length: 4.500 Inches Maximum
  • Center To Center Distance Between Mounting Facilities Parallel To Length: 2.396 Inches Minimum Single Mounting Facility And 2.416 Inches Maximum Single Mounting Facility
  • Overall Height: 3.313 Inches Maximum
  • Overall Width: 2.000 Inches Maximum
  • Case Material: Metal
  • Environmental Protection: Shock Resistant
  • Unthreaded Mounting Hole Diameter: 0.256 Inches Minimum Single Mounting Facility And 0.276 Inches Maximum Single Mounting Facility
  • Fragility Factor: Moderately Rugged
  • Winding Quantity: 1
  • Purpose For Which Designed: General
  • Coil Quantity: 1
  • Duty Type: Continuous
  • Mounting Facility Type And Quantity: 2 Unthreaded Hole Single Mounting Facility
  • Storage Type: General Purpose Warehouse
  • Cubic Measure: 29.800 Cubic Inches
  • Mounting Facility Pattern: In-Line Single Mounting Facility
  • Nonpile-Up Main Contact Arrangement: 1 Pole, Single Throw, Normally Open, Momentary Action
  • Time Delay: 0.01 Seconds Maximum Fixed Release Time
  • Time Delay: 0.025 Seconds Maximum Fixed Operate Time
  • Operating Voltage Rating And Type At Specified Temp: 28.0 Volts Dc 25 Deg Celsius Single Winding
  • Main Contact Load Current Rating At Maximum Rated Voltage: 200.0 Amperes Dc Resistive Load
  • Main Contact Maximum Voltage Rating In Volts: 28.0 Dc
  • Test Data Document: 81349-Mil-R-6106 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Terminal Type And Quantity: 4 Threaded Stud All Functions
  • Specification/Standard Data: 96906-MS24171 Government Standard
  • Pilatus PN/Spec#: 974.09.21.101

    Product Details
    Country of Origin: United States
    UOM : Each
    Pack Quantity : 1
    Ship Dimensions : 6 x 6 x 6 inches
    Shipping Weight : 2.46 pounds
    Manufacturer P/N : MS24171-D2
    NSN : 5945-01-297-5913
    ECCN : 9A991.d
    Schedule B Code : 8536.41.0065
    Military Standard : MS24171D2
    Alt. P/Ns : 6041H202
