Country of Origin
United States
Shipping Weight
0.012 pounds
Manufacturer P/N
MS14155-5
Schedule B Code
7318.22.0000

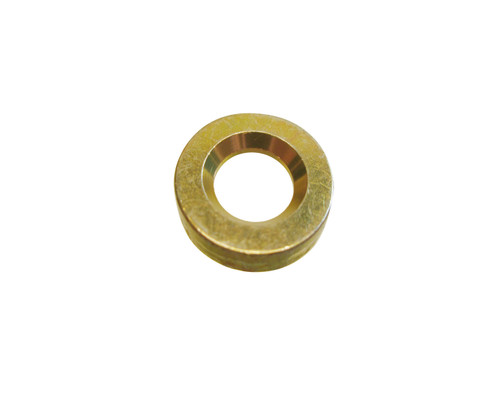

Hole Diameter: 0.314 Inches Minimum And 0.318 Inches Maximum Outside Diameter: 0.610 Inches Minimum And 0.620 Inches Maximum Material Thickness: 0.114 Inches Minimum And 0.124 Inches Maximum Hardness Rating: 39.0 Rockwell C Minimum And 43.0 Rockwell C Maximum Top Recess Diameter: 0.399 Inches Minimum And 0.409 Inches Maximum Bottom Recess Angle: 90.0 Degrees Nominal Top Recess Angle: 90.0 Degrees Nominal Bottom Recess Diameter: 0.399 Inches Minimum And 0.409 Inches Maximum Material: Steel Comp 4130 Overall Material Document And Classification: Mil-S-5059,Ty 302,1/2 Hard Mil Spec 1St Material Response Overall Or Mil-S-18729 Mil Spec 2Nd Material Response Overall Surface Treatment: Cadmium Overall and Chromate Overall Surface Treatment Document And Classification: QQ-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall Style Designator: Recessed Both Sides
