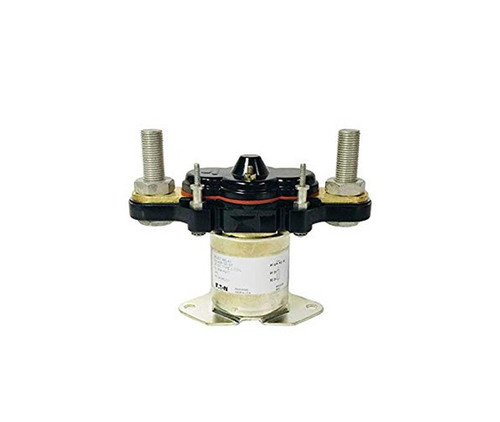

Military Standard MS24185-D1 Relay, Electromagnetic
Click To Enlarge
Customer Reviews

Military Standard MS24185-D1 Relay, Electromagnetic

Part#: MS24185-D1
Our Price (Each): $335.72
   (Sold in increments of 1)
Bulk Shop & Save
1 - 5$335.72 ea.
6 - 11$326.39 ea.
12 - 23$317.57 ea.
24 - 35$309.22 ea.
36+$301.29 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
$15.00Add the Manufacturer's Certification:
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  • Shop All Related:

  • Overall Length: 5.500 Inches Maximum
  • Center To Center Distance Between Mounting Facilities Parallel To Length: 3.000 Inches Nominal Single Mounting Facility
  • Overall Height: 2.438 Inches Maximum
  • Overall Width: 4.500 Inches Maximum
  • Case Material: Metal
  • Environmental Protection: Hermetic
  • Unthreaded Mounting Hole Diameter: 0.266 Inches Nominal Single Mounting Facility
  • Fragility Factor: Moderately Rugged
  • End Item Identification: Mrap - Rg-33
  • Winding Quantity: 1
  • Purpose For Which Designed: General
  • Coil Quantity: 1
  • Winding Dc Resistance Rating: 66.0 Ohms Nominal Single Winding
  • Duty Type: Continuous
  • Arc Quenching Method: Air
  • Mounting Facility Type And Quantity: 2 Unthreaded Hole Single Mounting Facility
  • Storage Type: General Purpose Warehouse
  • Cubic Measure: 60.340 Cubic Inches
  • Mounting Facility Pattern: In-Line Single Mounting Facility
  • Nonpile-Up Main Contact Arrangement: 1 Pole, Single Throw, Normally Open, Double Make, Momentary Action
  • Nominal Operating Current Rating And Type: 600.0 Milliamperes Dc Single Winding
  • Time Delay: 0.01 Seconds Maximum Fixed Release Time
  • Time Delay: 0.04 Seconds Maximum Fixed Operate Time
  • Operating Voltage Rating And Type At Specified Temp: 28.0 Volts Dc 25 Deg Celsius Single Winding
  • Main Contact Load Current Rating At Maximum Rated Voltage: 400.0 Amperes Dc Motor Load
  • Main Contact Load Current Rating At Maximum Rated Voltage: 400.0 Amperes Dc Resistive Load
  • Main Contact Load Current Rating At Maximum Rated Voltage: 100.0 Amperes Dc Inductive Load
  • Main Contact Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc
  • Test Data Document: 81349-Mil-R-6106 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Terminal Type And Quantity: 4 Threaded Stud All Functions
  • Specification/Standard Data: 96906-MS24185 Government Standard
    Product Details
    Country of Origin: USA
    UOM : Each
    Pack Quantity : 1
    Ship Dimensions : 4 x 3 x 0 inches
    Shipping Weight : 2.74 pounds
    Manufacturer P/N : MS24185-D1
    NSN : 5945-00-500-7195
    ECCN : 9A991.d
    Schedule B Code : 8536.41.0065
    Military Standard : MS24185D1
    Alt. P/Ns : 6041H217
