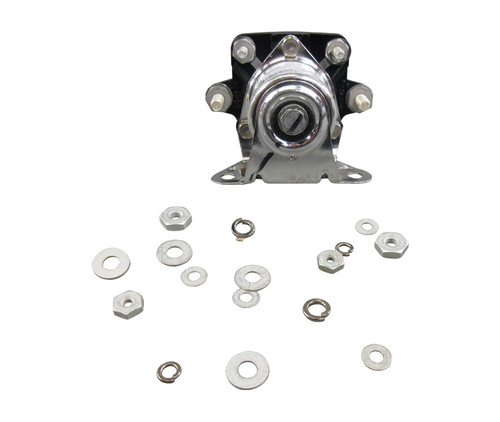

Military Standard MS24166-D2 Relay, Electromagnetic
Click To Enlarge
Military Standard MS24166-D2 Relay, ElectromagneticMilitary Standard MS24166-D2 Relay, ElectromagneticMilitary Standard MS24166-D2 Relay, ElectromagneticMilitary Standard MS24166-D2 Relay, ElectromagneticMilitary Standard MS24166-D2 Relay, Electromagnetic
Customer Reviews

Military Standard MS24166-D2 Relay, Electromagnetic

Part#: MS24166-D2
Our Price (Each): $137.86
   (Sold in increments of 1)
Bulk Shop & Save
1 - 5$137.86 ea.
6 - 11$134.03 ea.
12 - 23$130.41 ea.
24 - 35$126.98 ea.
36+$123.72 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  • Shop All Related:



  • Overall Length: 2.750 Inches Maximum
  • Center To Center Distance Between Mounting Facilities Parallel To Length: 1.844 Inches Minimum Single Mounting Facility And 1.906 Inches Maximum Single Mounting Facility
  • Overall Height: 2.500 Inches Maximum
  • Overall Width: 2.125 Inches Maximum
  • Unthreaded Mounting Hole Diameter: 0.209 Inches Minimum Single Mounting Facility And 0.229 Inches Maximum Single Mounting Facility
  • Fragility Factor: Moderately Rugged
  • Winding Quantity: 1
  • Purpose For Which Designed: General
  • Coil Quantity: 1
  • Winding Dc Resistance Rating: 94.0 Ohms Nominal Single Winding
  • Duty Type: Continuous
  • Mounting Facility Type And Quantity: 2 Unthreaded Hole Single Mounting Facility
  • Storage Type: General Purpose Warehouse
  • Cubic Measure: 14.609 Cubic Inches
  • Mounting Facility Pattern: In-Line Single Mounting Facility
  • Nonpile-Up Main Contact Arrangement: 1 Pole, Single Throw, Normally Open, Momentary Action
  • Operating Voltage Rating And Type At Specified Temp: 28.0 Volts Dc 25 Deg Celsius Single Winding
  • Main Contact Load Current Rating At Maximum Rated Voltage: 50.0 Amperes Dc Inductive Load
  • Main Contact Load Current Rating At Maximum Rated Voltage: 50.0 Amperes Dc Resistive Load
  • Main Contact Load Current Rating At Maximum Rated Voltage: 50.0 Amperes Dc Motor Load
  • Main Contact Load Current Rating At Maximum Rated Voltage: 25.0 Amperes Dc Lamp Load
  • Main Contact Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc
  • Test Data Document: 81349-Mil-R-6106 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Terminal Type And Quantity: 4 Threaded Stud All Functions
  • Specification/Standard Data: 96906-Ms24166 Government Standard
  • Pilatus PN/Spec#: 959.17.12.085
    Aeronautical Standard PN/Spec#: AN3350-1

    Product Details
    Country of Origin: USA
    UOM : Each
    Pack Quantity : 1
    Ship Dimensions : 4 x 4 x 3 inches
    Shipping Weight : 1.84 pounds
    Manufacturer P/N : MS24166-D2
    NSN : 5945-01-311-9927
    ECCN : 9A991.d
    Schedule B Code : 8536.41.0065
    Military Standard : MS24166D2
    Alt. P/Ns : 6041H201
    Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
