Approvals and Conformities
NSN
5325-01-452-0384
MIL-SPEC#
MIL-G-3036
Alternate PN#s
AN931-16
Product Attributes
Country of Origin
United States
Shipping Weight
0.005 pounds
ECCN
EAR99
Color Family
Black
Manufacturer P/N
MS35489-24
Schedule B Code
9606.10.0000
Pack Quantity
5
Series
MS35489
C Groove
1.875
A Outside
2.250
F Dimension
0.438
Color
Black
Material
Synthetic Rubber

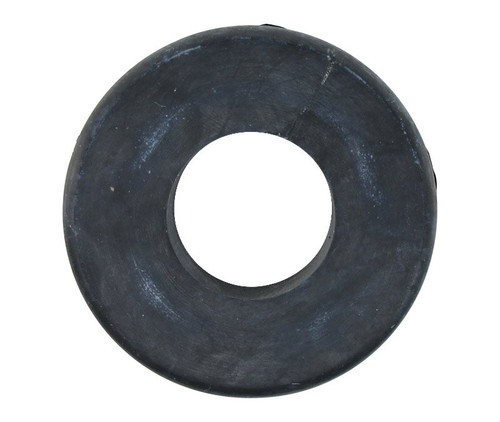

Black synthetic rubber conforms to MIL-G-3036. Flexible, hot oil and coolant-resistant grommets. Used to protect tubing, wiring, and control cables where they pass through bulkheads and fire walls. Note: MS35489 grommets and AN931 grommets of like dimensions are interchangeable. Grommet has a groove width of 1/16".
Features
Hot oil and coolant resistant- Hole Inner Diameter: 1"
- Outer Diameter: 2 1/4"
- Thickness: 7/16"
- Groove Width: 1/16"
- Groove Diameter: 1 7/8"
