HomeKlixon 3TC14-15 Circuit Breaker - 15 AMP

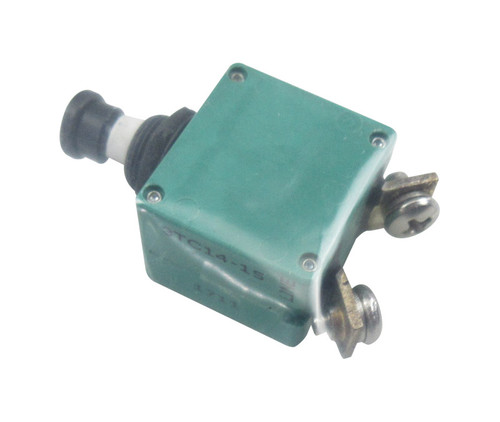

Klixon 3TC14-15 Circuit Breaker - 15 AMP
Click To Enlarge

Klixon 3TC14-15 Circuit Breaker - 15 AMP

Part#: 3TC14-15
Our Price (Each): $146.67
Bulk Shop & Save
1 - 11$146.67 ea.
12+$137.50 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
$15.00Add the Manufacturer's Certification:
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  • Shop All Related:

      Klixon singlephase TC devices are the smallest, lightest, high performance aircraft circuit breakers available today. They represent the state-of-the-art protection of today's aerospace power systems. Their light weight and small size make them especially well suited for aircraft, avionics and electronic systems.

      The Klixon trademark has set the standard for aerospace circuit breakers. For a small, light weight configuration, the TC series offers the endurance and reliability required by exacting military specifications, and are available in standard current ratings from 15 through 35 amperes. The 3TC is available in 15 to 35 amps.

      oordination br /> The 3TC singlephase and threephase breaker ratings are coordinated so that in the event of a fault of up to 6,000 amps letthrough current any rating will trip before another circuit breaker twice its rating. This results in improved overall equipment performance since only the smallest faulted circuit is interrupted, while larger circuits remain operational.

      mbient Temperature Compensation br /> Amberient compensated circuit breakers permit system designers to specify smaller gauge wire where the circuit breaker and wiring are exposed to different ambient temperatures. They are especially suited for application where ambient temperature exceeds the 160F (71C) maximum of nonambient compensated thermal circuit breakers. The TC series may be applied where operating temperatures are as high as 250F (121C) with no derating of the circuit breaker. This eliminates the need for cooling air and allows substantial weight, space, and cost savings.

      ripFree br /> The complete line of TC series circuit breakers is tripfree. The circuit breaker cannot be maintained closed during an overload even with the actuator button held closed.

      igh Short Circuit Capacity br /> For its miniature size, the 3TC series offers unusually high current interrupting capacity. Overloads up to 6,000 amps at 28 VDC or 2,0003,500 amps at 120 VAC, 400 Hz can be safely interrupted without affecting calibration or operating performance in the standard 3TC series.

      Features and Overview
      • Miniature size
      • Light weight
      • Tripfree design
      • Options include:
        • longer push button
        • high vibration
        • random vibration
        • metric mounting thread
        • metric terminal thread
        • dust boot (part #14500-1 fits 15/32 bushing
        • part #14500-5 fits 7/16 bushing)
        • terminal hardware
      • AS58091 qualified
      • Current rating: 15 to 35 amps
      • Coordinated ratings
      • High vibration resistance (option)
      • High interrupting capacity
      • Typical use: Where ambient temperature exceeds the 160F (71C) maximum of nonambient compensated thermal circuit breakers
      Product Details
      Country of Origin: USA
      UOM : Each
      Shipping Weight : 0.05 pounds
      Manufacturer P/N : 3TC14-15
      ECCN : EAR99
      Schedule B Code : 8536.20.0040
