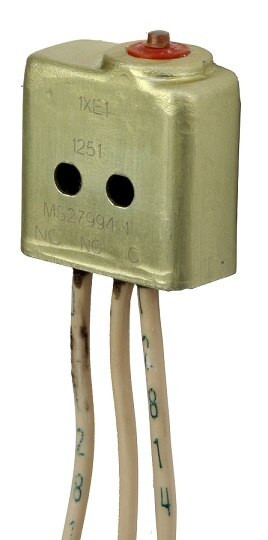

Honeywell 1XE1 Switch, Sensitive
Click To Enlarge
Customer Reviews

Honeywell 1XE1 Switch, Sensitive

Our Price (Each): $82.57
   (Sold in increments of 1)
Bulk Shop & Save
1 - 11$82.57 ea.
12+$76.68 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  •

  • Body Style : Hole Mounted
  • Hazardous Locations/Environmental Protection : Watertight
  • Overall Length : 0.626 Inches Maximum
  • Center To Center Distance Between Mounting Facilities Parallel To Length : 0.183 Inches Minimum And 0.193 Inches Maximum
  • Overall Height : 0.695 Inches Nominal
  • Overall Width : 0.326 Inches Maximum
  • Body Length : 0.626 Inches Maximum
  • Body Width : 0.326 Inches Maximum
  • Body Height : 0.600 Inches Nominal
  • Unthreaded Mounting Hole Diameter : 0.087 Inches Minimum And 0.091 Inches Maximum
  • Actuator Style : Round
  • Actuator Diameter : 0.055 Inches Minimum And 0.065 Inches Maximum
  • Actuator Height : 0.095 Inches Nominal
  • Actuator Free Position Height : 0.405 Inches Minimum And 0.445 Inches Maximum
  • Maximum Voltage Rating In Volts : 115.0 Ac And 28.0 Dc
  • Inclosure Type : Fully Inclosed
  • Mounting Method : Panel
  • Features Provided : Actuator Seal
  • Nonpile-Up Contact Arrangement : 1 Pole, Double Throw, Both Positions Maintained Single Switch Unit
  • Switch Release Force : 4.0 Ounces Minimum
  • Switch Actuating Force : 17.0 Ounces Maximum
  • Actuator Movement : 0.050 Pretravel Inches Maximum And 0.004 Overtravel Inches Minimum And 0.005 Differential Inches Nominal
  • Contact Load Current Rating At Maximum Rated Voltage : 7.000 Amperes Resistive Dc And 4.000 Amperes Inductive Dc And 4.000 Amperes Motor Dc And 7.000 Amperes Resistive Ac And 4.000 Amperes Inductive Ac And 4.000 Amperes Motor Ac
  • Test Data Document : 81349-Mil-S-8805 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Terminal Type And Quantity : 3 Wire Lead
  •
    Product Details
    Country of Origin: USA
    UOM : Each
    Pack Quantity : 1
    Shipping Weight : 0.05 pounds
    Manufacturer P/N : 1XE1
    NSN : 5930-00-880-2312
    ECCN : 9A991.d
    Schedule B Code : 8536.50.9065
    Military Standard : MIL-PRF-8805/32 MIL-S-8805/32
    Alt. P/Ns : MS27994-1
