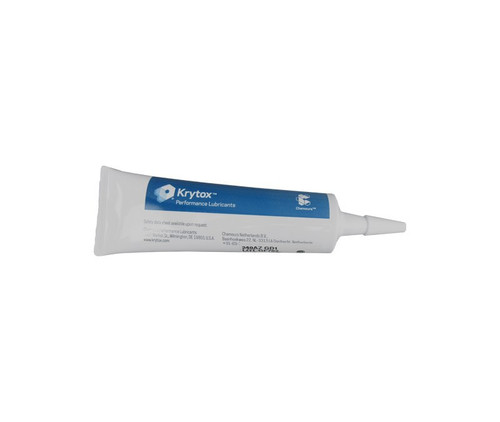

Chemours™ Krytox™ 240AZ Aircraft Instrument Fuel & Oxidizer Resistant Grease - 8 oz Tube

• Qualification Reference Number, 1 Oct 2008 : AFPET/PTPT 08-011
• Grease Type/Operating Range, ?C : Type I (-54 to 149)
• NATO Number : G-397
• Penetration Grade : NLGI 1
• Change in Worked Penetration (30 max.) : +13
• Corrosion on Copper (2b max.) : 1b
• High Temperature Bearing Performance (500 hr min. at 10,000 RPM, 204 ?C) : -
• Evaporation ASTM D-2595, % : 12.9
• Oil Separation, % : -
• Solubility in Fuel (20% max.), % : -
• Liquid Oxygen Impact Sensitivity 20 impacts at 43.3 in, no reaction : No Reaction
• Water Washout Characteristics (20% max.), % : -
• Oxidation Stability (5 max.), psi : -
• Dirt Count 75 ? and larger (0 per cc max.) 25 to 74 ? (1000 per cc max.) : 0/26
• Resistance to Aqueous Solution Distilled Water 50/50 Distilled Water/Ethanol : Pass Pass
• Film Stability and Corrosion on Steel : Pass
• Krytox? Base Oil Viscosity, 40 ?C, cSt : 22.8
• Krytox? Useful Range, ?C : -57 to 149
• Determination of % TML and CVCM from Thermal Outgassing : -
