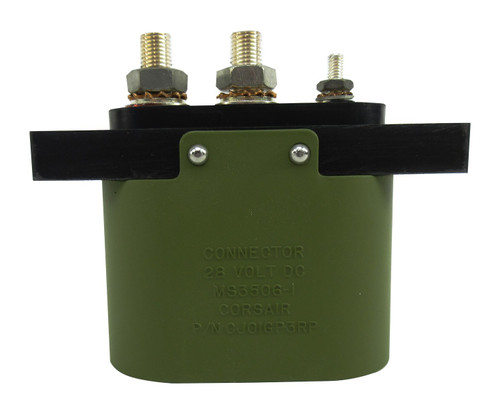

Military Standard MS3506-1 Oval 28-Volt External Aircraft Power Connector, Receptacle

Part#: MS3506-1
Our Price (Each): $93.51
   (Sold in increments of 1)
Bulk Shop & Save
1 - 5$93.51 ea.
6 - 11$90.91 ea.
12 - 23$88.46 ea.
24 - 35$86.13 ea.
36+$83.92 ea.

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  •

    Our Corsair oval external power receptacle fits right into the exterior of your aircraft for a smooth and aerodynamic installation. Try the Corsair glass reinforced external power receptacle is manufactured to MIL-C-81790 specifications. The molded glass bases are reinforced to prevent any moisture absorption. These high strength casings are reliable, delivering maintenance-free use in your aircraft for years. Our oval external power receptacle has copper and brass control contacts which are machined and silver-plated to MS tolerances. Studs and contact nuts for lug connections are placed at the rear of the product. Our aircraft external power receptacle has an anodized aluminum shield to guide plug insertion and create a guard against misalignment.

    Create an external power source for your aircraft lighting system and communications devices with this Corsair product. Find the most affordable options for your aircraft available today at SkyGeek. From cleaners to instruments, we offer the latest for any airplane model!

    Aeronautical Standard PN/Spec#: AN2552-3A

    Product Details
    Country of Origin: USA
    UOM : Each
    Pack Quantity : 1
    Shipping Weight : 0.95 pounds
    Manufacturer P/N : MS3506-1
    NSN : 5935-01-050-7485
    ECCN : 9A991.d
    Schedule B Code : 8538.90.7080
    Military Standard : MIL-C-7974 MIL-C-81790
    Alt. P/Ns : AS81790,AN2552-3A,Z00.N7709065061
    Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
    Specifications
  • Body Style: Straight Shape, Power Type
  • Overall Length: 4.500 Inches Nominal
  • Overall Height: 3.375 Inches Nominal
  • Overall Width: 1.500 Inches Nominal
  • Unthreaded Mounting Hole Diameter: 0.205 Inches Nominal
  • Distance Between Mounting Facility Centers: 3.750 Inches Nominal
  • Distance From Mounting Shoulder To Rear Face: 0.750 Inches Nominal
  • Mating End Quantity: 1
  • Contact Position Arrangement Style: 3 Single Mating End
  • Contact Removability: Nonremovable Single Mating End All Contact Groupings
  • Polarization Method: Contact
  • Shell Type: Solid
  • Terminal Location: Back Single Mating End All Contact Groupings
  • Contact Surface Treatment: Silver Single Mating End All Contact Groupings
  • Insert Material: Copper Alloy Single Mating End
  • Terminal Type: Threaded Stud Single Mating End All Contact Groupings
  • Shell Material: Aluminum Alloy
  • Included Contact Quantity: 3 Single Mating End All Contact Groupings
  • Included Contact Type: Round Pin Single Mating End All Contact Groupings
  • Precious Material And Location: Contact Surface Silver
  • Precious Material: Silver
