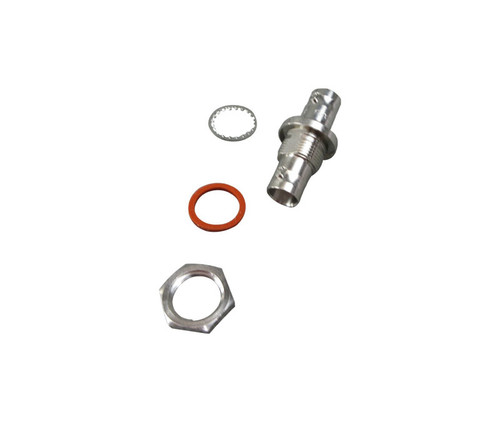

Amphenol RF 31-220H Brass/Nickle BNC Bulkhead Jack-Jack Straight Connector, Plug, Electrical
Click To Enlarge

Amphenol RF 31-220H Brass/Nickle BNC Bulkhead Jack-Jack Straight Connector, Plug, Electrical

Part#: 31-220H
Regular Price: $7.66
Our Price: $6.38  You Save $1.28 (17%)

Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
SKYGEEK WELCOMES INTERNATIONAL ORDERS
  • Please allow for an extra 7-10 days for International orders to process, especially orders including HazMat items, or items that are not in stock in our NY Warehouse.
  • International Orders Ship Complete: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
  •

  • Thread Class: 2A
  • Thread Direction: Right-Hand
  • Body Style: Straight Shape Quick Connect
  • Overall Length: 1.562 Inches Maximum
  • Overall Width: 0.800 Inches Maximum
  • Environmental Protection: Cold Resistant And Heat Resistant And Corrosion Resistant And Hermetic And Moisture Resistant And Shock Resistant And Vibration Resistant And Weatherproof
  • Mounting Facility Thickness: 0.055 Inches Minimum And 0.275 Inches Maximum
  • Threaded Device Type: Mounting Bushing
  • Mating End Quantity: 2
  • Contact Position Arrangement Style: Bnc All Mating Ends
  • Contact Removability: Nonremovable All Mating Ends Single Contact Grouping
  • Contact Maximum Ac Voltage Rating In Volts: 500.0 All Mating Ends Single Contact Grouping
  • Contact Maximum Frequency Rating: 4000.0 Megahertz All Mating Ends Single Contact Grouping
  • Shell Type: Solid
  • Connector Locking Method: Bayonet Pin
  • Radio Frequency Type Contact Characteristic Impedance In Ohms: 50.0 All Mating Ends Single Contact Grouping
  • Thread Quantity Per Inch: 28
  • Nominal Thread Size: 0.500 Inches
  • Contact Material: Copper Alloy All Mating Ends Single Contact Grouping
  • Contact Surface Treatment: Gold All Mating Ends Single Contact Grouping
  • Insert Material: Plastic All Mating Ends
  • Contact Surface Treatment Document And Classification: Mil-G-45204,Ty 2,Gr C,Cl 1 Mil Spec Single Treatment Response All Mating Ends Single Contact Grouping
  • Shell Material: Copper Alloy
  • Shell Surface Treatment: Silver
  • Shell Material Document And Classification: Qq-B-613 Fed Spec Single Material Response Or Qq-B-626 Fed Spec Single Material Response
  • Included Contact Quantity: 1 All Mating Ends Single Contact Grouping
  • Bushing Accommodation Hole Shape: Round W/Flat
  • Included Contact Type: Coaxial Socket All Mating Ends Single Contact Grouping
  • Precious Material And Location: Contact Surfaces Gold And Shell Surfaces Silver
  • Precious Material And Weight: 0.110 Gold Grains, Troy
  • Test Data Document: 81349-Mil-A-55339 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Thread Series Designator: Unef
  • Specification/Standard Data: 81349-Mil-A-55339/13 Government Specification
  •
    Product Details
    Country of Origin: USA
    UOM : Each
    Color Family : Silver
    Ship Dimensions : 2 x 0.25 x 0.25 inches
    Shipping Weight : 0.01 pounds
    Manufacturer P/N : 031-220H
    NSN : 5935-00-823-0308
    ECCN : EAR99
    Schedule B Code : 8536.69.5050
    Military Standard : UG-492A/U
