INTERNATIONAL SHIPPING
Approvals and Conformities
MIL-SPEC#
MIL-A-46146 Type I Group II
Product Attributes
Country of Origin
United States
Size
10.3 oz
Shipping Weight
12 pounds
ECCN
EAR99
Color Family
Clear
Manufacturer P/N
AS3145C-10C
Schedule B Code
3214.10.0010
Pack Quantity
12
Size
10.3 oz Cartridge
Color
Clear

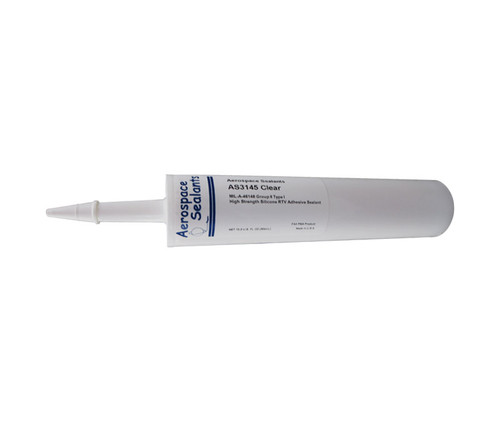

Aerospace Sealants AS3145 RTV Sealant is an FAA-approved replacement for Dow Corning RTV3145 High Strength Neutral Cure RTV Silicone Adhesive Sealant. It has been tested and conforms to requirements of MIL-A-46146 Type I Group II material.
A non-corrosive, high strength, neutral curing silicone RTV adhesive rubber, AS3145 is suitable for use on applications requiring fast adhesion and fast development of physical properties. It can be used in both manual and automatic dispensing equipment and, when applied to the substrate, allows handling of the bonded assmebly within an hour.
A non-corrosive, high strength, neutral curing silicone RTV adhesive rubber, AS3145 is suitable for use on applications requiring fast adhesion and fast development of physical properties. It can be used in both manual and automatic dispensing equipment and, when applied to the substrate, allows handling of the bonded assmebly within an hour.
Features
- Fast room temperature cure
- Thixotropic paste
- Excellent unprimed adhesion to plastic, metal and glass
- Fast onset of adhesion
- Non-corrosive
UNCURED
- Color: Translucent
- Viscosity, cps: 500,000
- Specific Gravity: 1.12
- Consistency: Thixotropic paste
- Working Time, mins. @ R.T.: 8
- Tack Free Time, mins. @ R.T.: 15
- Application Rate, 90 PSI, g/min.: 300
- Cured - 72 hrs. @ R.T.
- Tensile Strength, PSI: 900
- Elongation, %: 800
- Durometer, Shore A: 50
- Peel Strength, PPI: 100
- Tear Strength, PLI: 200
- Dielectric Strength, V/mil: 790
- Dielectric Constant: 2.6
- Dissipation Factor: 0.0009
- Volume Resistivity, ohm·cm: 1.8 x 1015
- Brittle Point, °F (°C): -68 (-55)
- Maximum Continuous Operating Temperature, °F (°C): 500 (260)
- Maximum Continuous Intermittent Temperature, °F (°C): 600 (315)
- Thermal Conductivity Btu/hr/ft2, °F/ft: 0.17
- Coefficient of Expansion, in/in,°F: 7.8 x 10-7
