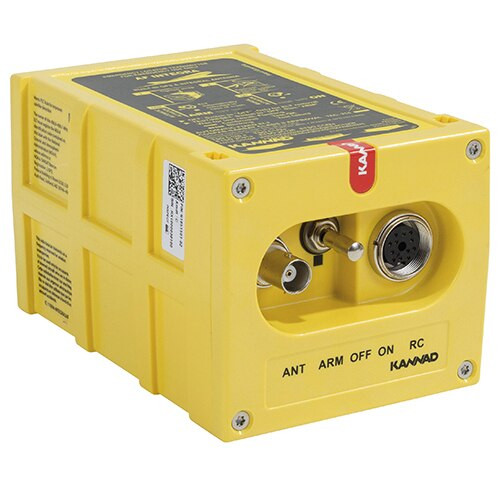

Kannad S1840501-02 406 AF Compact 406 Mhz ELT
Click To Enlarge
Kannad S1840501-02 406 AF Compact 406 Mhz ELTKannad S1840501-02 406 AF Compact 406 Mhz ELT

Kannad S1840501-02 406 AF Compact 406 Mhz ELT

Availability: Ready to ship the next business day.
International Orders
Part#: S1840501-02
by Kannad
Our Price: $849.99
I Want All Extra Services
$10.00Add the Manufacturer's Certification:
Code: UN3091 | Class: 9 | Group: II
Material Safety Data Sheets (MSDS): MSDS1
Quantity:
The KANNAD 406 AF-COMPACT is designed for private pilots, for all light aircraft requiring a very compact automatic fixed ELT.

The robust and reliable shock sensor will automatically activate the ELT in the event of a crash, the pilot can also activate the ELT in case of emergency.

  • Versatility of programming protocols: Tail number, 24 bit address (same as MODE “S”), Serialized Number, Aircraft Operator Designator.

  • Maintenance limited to a monthly self-test performed remotely from the cockpit or from the ELT itself. ELT status displayed by a flashing indicator and buzzer.

  • Battery replacement only required every 6 years, considerably reducing yearly maintenance costs over previous generation ELTs.

  • Whip or Rod antenna available.

  • Note: It is required that every 406 ELT be registered by the aircraft owner after installation, re-registered every two years, and re-registered if there are any changes to information provided to NOAA in a previous registration, such as telephone numbers, aircraft registration number, change of owner, etc.

    Every 406 ELT is programmed at the factory with a unique identification code used by the Rescue Coordination Center to determine if an emergency has actually occurred. This identifier is called the 15-Hex ID. It is located on the front label of the ELT. This unique identifier is stored in a database maintained by NOAA. It can then be accessed to contact the owner in the event of an ELT activation. Registration is free, and can even be done via the Internet on the NOAA website at: www.sarsat.noaa.gov, or at www.beaconregistration.noaa.gov.

    This 406 Mhz ELT is programmed for USA Registered Aircraft. If your plane is registered in any country other than the United States we will need a 406 Mhz ELT Programming Data Sheet completed Click Here to Download

    Overall Rating for Kannad S1840501-02 406 AF Compact 406 Mhz ELT
    (no reviews)Be the first to rate and review this item

    Your question might already be answered below, wouldn't that be a time saver!
    If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

    Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
    Product Details
    Shipping Weight : 3 pounds
    Manufacturer P/N : S1840501-02
    Features
    This new generation of ELT offers all the latest improvements of the COSPAS-SARSAT system with the 406 MHz frequency at a very competitive price for full package:

  • Very small:131mm x 86mm x 75,4mm (5.1" x 3.4" x 2.9")
  • Very light: 850gr (1.87lb)
  • Battery life: 6 years
  • Programming ease
  • GPS Navigator Interface (Optional)
  • Universal mountain bracket
  • Minor charge approval available for most common aircraft
  • No aircraft power supply required
  • Internal buzzer
  • Specifications
    Type

    ELT Automatic fixed COSPAS-SARSAT Category II (-20°C to +55°C)

    406 MHz transmission
  • Frequency: 406.028 Mhz+/-1 kHz
  • Output power: 5W (37 +/- 2 dBm)
  • Modulation type: 16K0G1D (Biphase L encoding)
  • Transmission duration: 440ms (short message) every 50 sec.
  • Autonomy: Over 48 hours at -20°C

    121.5 MHz transmission
  • Frequencies: 121.5 MHz +/- 3 kHz
  • Output power: 100mW mini (+20dBm) for each frequency
  • Modulation type: 3K20A3X
  • Modulation rate: > 85 %
  • Frequency of modulation signal: 1420 Hz to 490 Hz with decreasing sweep
  • Autonomy: Over 48 hours at -20°C

    Controls
  • ARM / OFF / ON switch
  • Bright red LED
  • BNC antenna connector
  • DIN12 socket for remote control panel (RCP) and pin
  • programming option
  • Internal Buzzer

    G-Switch sensor
  • Mechanical G-switch sensor compliant with EUROCAE ED62 specifications

    Battery
  • KIT BAT200, P/N: S1840510-01
  • LiMnO2 two-element battery for transmitter power supply Replacement every 6 years

    Housing
  • Material: Molded plastic
  • Color: Yellow (color compounded)
  • Dimensions: Installed with mounting bracket max 140 x 98 x 80 mm (5.51" x 3.85" x 3.14")
  • Weight including batteries: typical 850 gr (1.873 lb) max 875 gr (1.929 lb)
  • Tightness: O-rings

    Environmental conditions
  • RTCA DO-160E / EUROCAE Section 4 to 24: [D1]*A*[YLMC]AYXXXXZXXX[ZC]XB Compliant with section 25

    Qualifications
  • ETSO-2C91a & ETSO-2C126
  • (EUROCAE ED62)
  • TSO Pending
  • In The Box
  • Compact ELT transmitter with six year battery
  • Universal mounting bracket
  • RC200 Remote Control Switch and Sub D Connector
  • DIN-12 ELT connector
