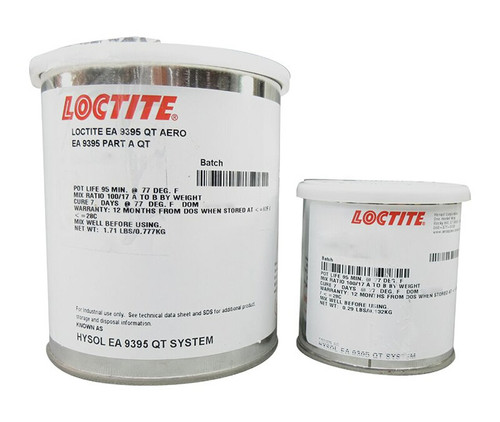

Henkel Hysol EA 9395 High Temperature Epoxy Paste Adhesive - Quart

Mixing:
Combine Part A and Part B in the correct ratio and mix thoroughly. IMPORTANT: Heat buildup during or after mixing is normal. Do not mix quantities greater than 450 grams as dangerous heat buildup can occur causing uncontrolled decomposition of the mixed adhesive. TOXIC FUMES CAN OCCUR, RESULTING IN PERSONAL INJURY. Mixing smaller quantities will minimize the heat build-up.

Applying:
Bonding surfaces should be clean, dry and properly prepared. For optimum surface preparation, consult the Hysol Surface Preparation Guide. The bonded parts should be held in contact until the adhesive is set. Handling strength for this adhesive will occur in 24 hours @ 77°F/25°C, after which the support tooling or pressure used during cure may be removed. Since full bond strength has not yet been attained, load application should be small at this time.

Curing:
This adhesive may be cured for 5 days @ 77°F/25°C or 1 hour @ 150°F/66°C to achieve normal performance.

Clean Up:
It is important to remove excess adhesive from the work area and application equipment before it hardens. Denatured alcohol and many common industrial solvents are suitable for removing uncured adhesive. Consult your supplier's information pertaining to the safe and proper use of solvents.

This material will normally be shipped at ambient conditions, which will not alter our standard warranty, provided that the material is placed into its intended storage upon receipt. Premium shipment is available upon request.

Handling

Mixing:

This product requires mixing two components together just prior to application to the parts to be bonded. Complete mixing is necessary. The temperature of the separate components prior to mixing is not critical, but should be close to room temperature (77°F/25°C).

Mix Ratio by Weight: 100 (Part A) : 17 (Part B)

Note: Volume measurement is not recommended for structural applications unless special precautions are taken to assure proper ratios.

Pot Life:

(450 g mass) 95 - 100 minutes @ 77°F/25°C. Method - ASTM D2471 in water bath.

Henkel QC Acceptance Testing:
This data sheet provides users with typical properties obtained from this adhesive. These values are not meant to be used to develop aerospace QC acceptance testing. Users interested in establishing values and tests for routine QC acceptance should request our internal specification (DAS), which provides detail test methods and values used to certify this adhesive.

Bond Strength Performance

Tensile Lap Shear Strength
Tensile lap shear strength tested per ASTM D1002 after curing for 5 days @ 77°F/25°C. Adherends are 2024-T3 Alclad aluminum treated with phosphoric acid anodized per ASTM D3933.

Peel Strength

T-Peel strength tested per ASTM D1876 after curing for 5 days @ 77°F/25°C. Adherends are 2024-T3 Alclad aluminum treated with phosphoric acid anodized per ASTM D3933.

Bell Peel strength tested per ASTM D3167 after curing for 5 days @ 77°F/25°C. Adherends are 2024-T3 Alclad aluminum treated with phosphoric acid anodized per ASTM D3933.

Specifications

The above values are typical results under ideal conditions. To establish certification values, please refer to the Henkel Aerospace Specification which defines quality control test values, methods and procedures. For a copy of the Henkel Aerospace Specification, contact Henkel's Literature Desk at (925) 458-8000.

Service Temperature

Service temperature is defined as that temperature at which this adhesive still retains 1000 psi/6.9 MPa using test method ASTM D1002 and is approximately 350°F/177°C.

Bulk Resin Properties
Tensile Properties - tested using 0.125 inch/3.18 mm castings per ASTM D638, cured 5 days @ 77°F/25°C.

Tensile Strength @ 77°F/25°C: 8,070 psi / 55.6 MPa
Tensile Modulus, dry @ 77°F/25°C: 717 ksi / 4940 MPa
Elongation at Break, @ 77°F/25°C: 2.6%
Shore D Hardness @ 77°F/25°C: 90
Tg (tan delta by DMTA): 163°F / 73°C
Shear Modulus, dry @ 77°F/25°C: 224 ksi / 1543 Mpa

Compressive Properties - tested with cylindrical specimens 0.5 inch/12.7 mm diameter by 1 inch/25.4mm per ASTM D695.

Electrical Properties - tested per ASTM D149, D150.

Dielectric Constant: 4.22 0.1 KHz / 4.13 1.0 KHz / 3.97 10.0 KHz
Dissipation Factor: .016 0.1 KHz / .021 1.0 KHz / .033 10.0 KHz

Handling Precautions

Do not handle or use until the Material Safety Data Sheet has been read and understood. For industrial use only.

General:
As with most epoxy based systems, use this product with adequate ventilation. Do not get in eyes or on skin. Avoid breathing the vapors. Wash thoroughly with soap and water after handling. Empty containers retain product residue and vapors, so obey all precautions when handling empty containers.

CAUTION! This material may cause eye and skin irritation or allergic dermatitis. It contains epoxy resins.

WARNING! This material causes eye and skin irritation or allergic dermatitis. It contains amines.
