Home Owner Shop Aircraft Lighting Sealed Beam LampGeneral Electric 4552 Sealed Beam Aircraft Lamp - MS25242-4552

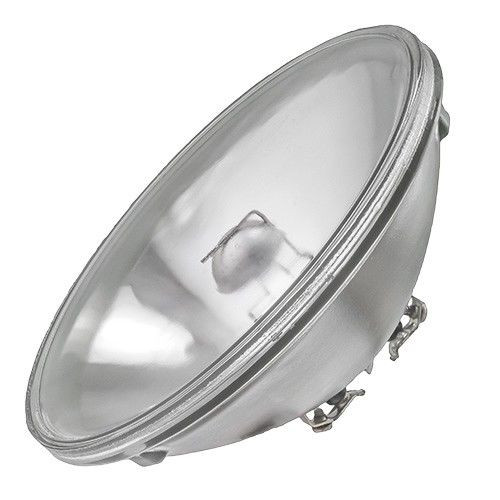

General Electric 4552 Sealed Beam Aircraft Lamp - MS25242-4552

General Electric 4552 Sealed Beam Aircraft Lamp - MS25242-4552

Availability: In Stock and Ready To Ship!

International Orders

Part#: GE-4552

by GE Lighting

Rate and Review this Item

DescriptionLearn more about this product
ReviewsFind out what others have said
Customer Q & A

General Characteristics
Lamp Type	Sealed Beam - PAR
Bulb	PAR64
Base	Screw Terminals
Filament	CC-8
Product Technology	Incandescent
Wattage	250
Voltage	28
Voltage (MIN)	N/A
Rated Life	25 hrs
Rated Life (Vert)	N/A
Primary Application	Aircraft; Very Narrow Spot

Photometric Characteristics

Beam Spread - Horizontal 7� - 10%

Beam Spread - Vertical 8� - 10%

Max. Beam Candlepower (MBCP) (MAX) 500,000

Dimensions

Maximum Overall Length (MOL) 3.7500 in (95.2 mm)

Bulb Diameter (DIA) 8.000 in (203.2 mm)

Product Information

Product Code 40576

Description 4552

ANSI Code 4552

Standard Package Case

Standard Package GTIN 10043168405765

Standard Package Quantity 12

Overall Rating for General Electric 4552 Sealed Beam Aircraft Lamp - MS25242-4552

(no reviews)

Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.

Product Details

Shipping Weight : 0.6 pounds

Manufacturer P/N : GE-40576

Schedule B Code : 8539100040

Alt. P/Ns : 11-04189
