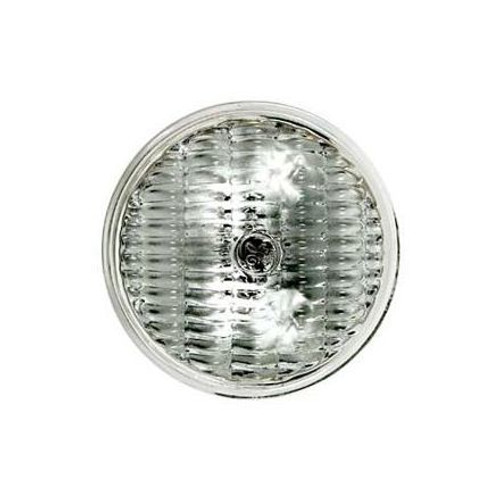

GE4505 / 24640 Sealed Beam Aircraft Lamp

GE4505 / 24640 Sealed Beam Aircraft Lamp
GE4505 / 24640 Sealed Beam Aircraft LampGE4505 / 24640 Sealed Beam Aircraft LampGE4505 / 24640 Sealed Beam Aircraft LampGE4505 / 24640 Sealed Beam Aircraft LampGE4505 / 24640 Sealed Beam Aircraft Lamp
Calculate Shipping Costs
Item #:4505
Availability:
Usually ships the same business day.
Guarantee your order ships out today (US ONLY)
($2.99):   Yes   No
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
Item Rating:
Price:$15.03
Add the Manufacturer's Certification:
$10.00
Quantity:
Send Page to Friend
GENERAL CHARACTERISTICS
Lamp type Sealed Beam - PAR
Bulb PAR36
Base Screw Terminals
Filament CC-6
Product Technology Incandescent
Wattage 50
Voltage 28
Rated Life 400 hrs
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS
Beam Spread - Horizontal 11° - 10 %
Beam Spread - Vertical 5° - 10 %
Max. Beam Candlepower (MBCP) (MAX) 45000
DIMENSIONS
Maximum Overall Length (MOL) 2.7500 in (69.8 mm)
Bulb Diameter (DIA) 4.500 in (114.3 mm)
PRODUCT INFORMATION
Product Code 24640
Description 4505
ANSI Code 4505
Standard Package Case
Standard Package GTIN 00043168246408
Standard Package Quantity 12
