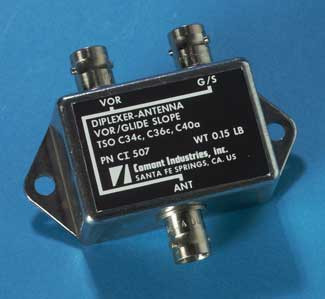

Cobham CI507 Diplexer VOR / Glide Slope

Availability: In Stock and Ready To Ship!

International Orders

Part#: CI507

by Cobham

Rate and Review this Item

DescriptionLearn more about this product
ReviewsFind out what others have said
Customer Q & A

Single VOR/single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy.

MODEL CI 507 Diplexer VOR / Glide Slope
Electrical
Frequency	108 - 118 and 329 - 335 MHz
VSWR	1.5:1 Maximum
Insertion Loss	0.5 dB Maximum
Isolation	20 dB Minimum
Impedance RF	50 Ohms
Mechanical
Weight	0.20 lb. Maximum
Height	0.88 in. Maximum
Material	Die Cast Aluminum
Finish	Aluminum
Connector	BNC (Female)
Environmental
	Internal Mount
Federal Specifications
FAA TSO	C34c, C36c, C40a
ORDER OPTIONS
Connector
BNC	Standard

Overall Rating for Cobham CI507 Diplexer VOR / Glide Slope

(no reviews)

Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.

Product Details

Shipping Weight : 0.21 pounds

Manufacturer P/N : CI507

ECCN : 7A994

Schedule B Code : 8529104000
