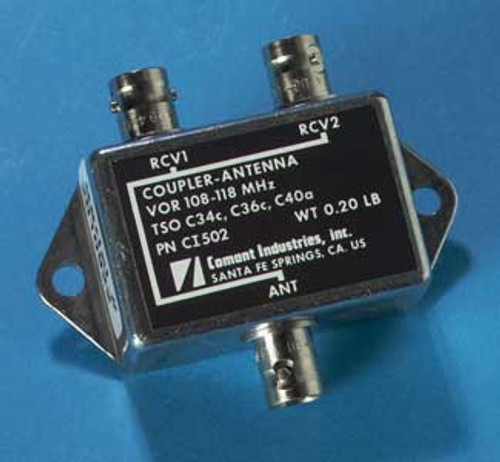

Cobham CI502 Coupler VOR
Click To Enlarge

Cobham CI502 Coupler VOR

Availability: In Stock and Ready To Ship!
International Orders
Part#: CI502
by Cobham
Our Price: $144.00
I Want All Extra Services
$10.00Add the Manufacturer's Certification:
Quantity:

Dual VOR coupler allows the simultaneous use of two VOR receivers from one VOR antenna. Compact design makes installation easy.

MODEL                   CI 502 Coupler VOR
Electrical
Frequency 108 - 118 MHz
VSWR 1.5:1 Maximum
Insertion Loss 0.5 dB Maximum
Isolation 20 dB Minimum
Impedance RF 50 Ohms
Mechanical
Weight 0.20 lb. Maximum
Height 0.88 in. Maximum
Material Die Cast Aluminum
Finish Aluminum
Connector BNC (Female)
Environmental
Internal Mount
Federal Specifications
FAA TSO C36c, C40c
ORDER OPTIONS
Connector
BNC CI 502
TNC CI 502-2
Overall Rating for Cobham CI502 Coupler VOR
(no reviews)Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
Product Details
Shipping Weight : 0.21 pounds
Manufacturer P/N : CI502
ECCN : 7A994
Schedule B Code : 8529104000
