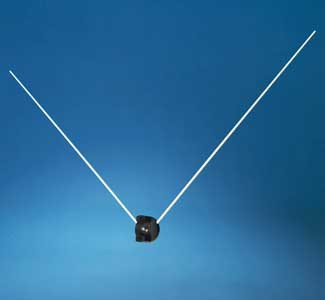

Cobham CI215 V-Dipole Antenna
Click To Enlarge

Cobham CI215 V-Dipole Antenna

Availability: In Stock and Ready To Ship!
International Orders
Part#: CI215
by Cobham
Our Price: $412.56
I Want All Extra Services
$10.00Add the Manufacturer's Certification:
Quantity:

"V" Dipole VOR/Glide Slope Antenna with detachable elements features two integrally molded mouning legs or "spacers" for increased strength. Radiating elements are laminated with polyester glass material for improved precipitation static protection. Interchangeable with the VOR/GS antenna used on most Cessna single engine aircraft since 1980 including the Cessna 182 and 210 models. Not approved for helicopter installations.

MODEL                            CI 215 V-Dipole
Electrical
Frequency 108 - 118 MHz (VOR / LOC)
329 - 335 MHz (Glide Slope)
VSWR 3.0:1 108 - 118 MHz (VOR / LOC)
3.0:1 329 - 335 MHz (Glide Slope)
Polarization Horizontal
Radiation Pattern Dipole
Impedance 50 Ohms Nominal
Power Receive Only
Mechanical
Weight .035 lb. Maximum
Height 16.00 lb. Maximum
Material Delrin housing / Glass laminate whips / Stainless radiators
Finish Black housing / Polyurethane enamel over P-Stat paint
Connector BNC
Environmental
Temperature -55ºC to +85ºC
Altitude 50,000 ft.
Air Speed 250 KTS TAS @ 25,000 ft.
Federal Specifications
RTCA Environmental DO 160
Environmental Category C2ALXXXXXXXXXXX
FAA TSO C34c, C38c, C40c
RTCA MOPS DO-192, DO-195, DO-196
ORDER OPTIONS
Connector
BNC Standard
Color
White Radiators only
Overall Rating for Cobham CI215 V-Dipole Antenna
(no reviews)Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
Product Details
Shipping Weight : 0.9 pounds
Manufacturer P/N : CI215
ECCN : 7A994
Schedule B Code : 8529104000
