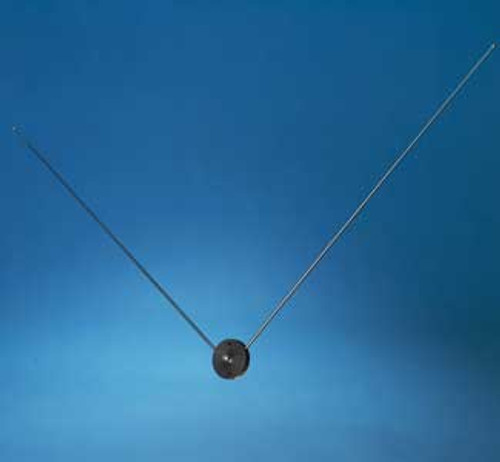

Comant CI158C V-Dipole Antenna


Images
Enlarge Image    Send Page to Friend
In Stock
AVAILABILITY: Usually ships the same business day.
 I Want All Extra Services
$2.99
Guarantee your order ships out today (US ONLY)
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
$10.00
Add the Manufacturer's Certification:
Item #:CI158C

Our Price: $278.64

Quantity:
Shipping Calculator

"V" Dipole VOR/Glide Slope Antenna with detachable elements mounts on top of the vertical fin stabilizer for most single engine general aviation aircraft. RF design similar to the CI 157P. Integral ferrite balun provides for higher radiation efficiency. Detachable element results in a significantly smaller shipping and storage carton than fixed element versions. Not approved for helicopter installations.

MODEL                            CI 158C V-Dipole

Electrical
Frequency 108 - 118 MHz (VOR / LOC)
329 - 335 MHz (Glide Slope)
VSWR 3.0:1 108 - 118 MHz (VOR/LOC)
3.0:1 329 - 335 MHz (Glide Slope)
Polarization Horizontal
Radiation Pattern Dipole
Impedance 50 Ohms Nominal
Power Receive only
Mechanical
Weight 0.35 lb. Maximum
Height 17 5/8 in. Maximum
Material Delrin housing / Stainless whips
Finish Black housing / Stainless whips
Connector BNC
Environmental
Temperature -55ºC to +85ºC
Altitude 50,000 ft.
Air Speed 250 Knots TAS @ 25,000 ft.
Federal Specifications
RTCA Environmental DO-160
Environmental Category B2ALXXXXXXXXXXX
FAA TSO C34c, C38c, C40c
RTCA MOPS DO-192, DO-195, DO-196
ORDER OPTIONS
Connector
BNC Standard
