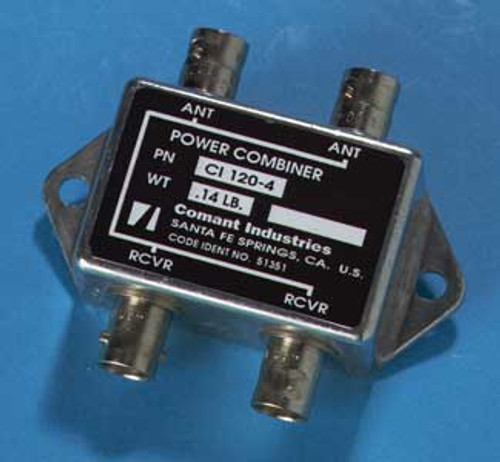

Comant CI120-4 Combiner VOR/GS


Images
Enlarge Image    Send Page to Friend
Preorder
AVAILABILITY: Ships to you in 4-6 weeks
 I Want All Extra Services
$10.00
Add the Manufacturer's Certification:
Item #:CI120-4

Our Price: $211.68

Quantity:
Shipping Calculator

Two input - two output Power Combiner is standard equipment with Comant's CI 120-200G/S and CI 135-200. A typical CI 120-200G/S set up is depicted in the inset of this page. For either antenna system, the CI 120-4 provides for two separate cable runs to the avionics installation for NAV 1 and NAV 2 receivers.

MODEL                   CI 120-4 Power Combiner VOR/GS

Electrical
Frequency 108 - 118 and 329 - 335 MHz
Power Split 6 dB
VSWR 1.5:1 Maximum
Insertion Loss 1.5 dB Maximum
Isolation 20 dB Minimum
Amplitude Balance ± 0.5 dB
Impedance RF 50 Ohms Nominal
Phase  180° ±5° Between Antenna Ports
0° ±5° Between Antenna Ports
Mechanical
Weight 0.1 lb. Maximum
Height 0.97 in. Maximum
Material Die Cast Aluminum
Finish Aluminum
Connector BNC (Female)
Environmental
Internal Mount
Federal Specifications
RTCA Environmental DO-160C
Environmental Category [A2F2]-AC[CLMY]XRXXXSXXXXXXXC
FAA TSO C34c, C36c, C40a
RTCA MOPS  DO-192, DO-195, DO-196
ORDER OPTIONS
Connector
BNC Standard
