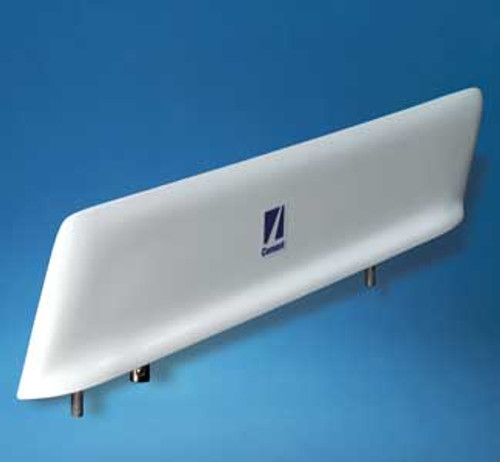

Comant CI118-9 Marker Beacon Antenna


Images
Enlarge Image    Send Page to Friend
In Stock
AVAILABILITY: Usually ships the same business day.
 I Want All Extra Services
$2.99
Guarantee your order ships out today (US ONLY)
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
$10.00
Add the Manufacturer's Certification:
Item #:CI118-9

Our Price: $478.08

Quantity:
Shipping Calculator

Identical to CI 118 except the mounting configuration allows for a "drop-in" replacement to the Honeywell Bendix-King™ KA26 Marker Beacon. This Comant design has been tested to the tough DO-160D environmental standards. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.

MODEL                             CI 118-9 Marker Beacon

Electrical
Frequency 75 MHz
VSWR ≤ 1.7:1 Maximum
Polarization Parallel to the Mounting Plane
Radiation Pattern Partially Downward
Impedance RF 50 Ohms
Resistance DC DC Grounded
Power RF Receive Only
Mechanical
Weight 0.65 lb. Maximum
Height 2.69 in. Maximum
Material Molded Radome
Finish Polyurethane Enamel
Connector BNC
Environmental
Temperature -55ºC to +85ºC
Altitude 45,000 ft.
Air Speed 400 Knots TAS at 25,000 ft.
Federal Specifications
RTCA Environmental DO-160D
Environmental Category [D2]-XAX[S(C,F,Y)]XRFDXSX
[X]XXX[XXX]X[XXXX]XXX
FAA TSO C35d
RTCA MOPS DO-138, DO-143
ORDER OPTIONS
Connector
BNC Standard
Color
White Standard
