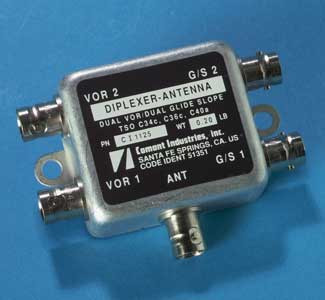

Comant CI1125 Diplexer Dual VOR/ Dual GS


Images
Enlarge Image    Send Page to Friend
In Stock
AVAILABILITY: Usually ships the same business day.
 I Want All Extra Services
$2.99
Guarantee your order ships out today (US ONLY)
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
$10.00
Add the Manufacturer's Certification:
Item #:CI1125

Our Price: $151.92

Quantity:
Shipping Calculator

Dual VOR/dual glide slope diplexer features diplexer circuitry in a small die-stamped housing for high reliability. Provides operation between two VOR receivers and two glide slope receivers from the same VOR/glide slope antenna.

MODEL                   CI 1125 Diplexer Dual VOR/ Dual GS

Electrical
Frequency 108 - 118 and 329 - 335 MHz
VSWR 1.5:1 Maximum
Insertion Loss 0.6 dB Maximum
Isolation 20 dB Minimum between VOR & GS
18 dB Minimum between VOR Ports
18 dB Minimum between GS Ports
Impedance RF 50 Ohms
Mechanical
Weight 0.25 lb. Maximum
Height 0.75 in. Maximum
Material Aluminum
Finish Aluminum
Connector BNC (Female)
Environmental
Internal Mount
Federal Specifications
FAA TSO C34c, C36c, C40a
ORDER OPTIONS
Connector
BNC Standard
