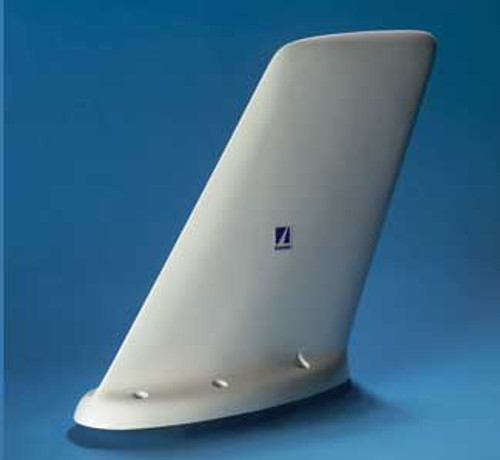

Comant CI108-1 VHF Blade Antenna

Comant CI108-1 VHF Blade Antenna
Calculate Shipping Costs
Item #:CI108-1
Availability:
Usually ships the same business day.
Guarantee your order ships out today (US ONLY)
($2.99):   Yes   No
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
Item Rating:
Price:$681.84
Add the Manufacturer's Certification:
$10.00
Quantity:
Send Page to Friend

Designed for world-wide service where VHF communication is available over a wider band. Suitable for either top or bottom mounting. Solid Polyurethane construction for strength, reliability and durability. White Polyurethane finish is Skydrol and rain erosion resistant. The 108 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements. Optional leading edge protection available with the CI 108-1-L.



MODEL                                CI 108-1 VHF Blade Antenna
Electrical
Frequency 118 -153 MHZ
VSWR 2.5:1
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance RF 50 Ohms
Power RF 25 Watts
Mechanical
Weight 2.5 lbs. Maximum
Height 12.0 In. Maximum
Material Highly Density Polyurethane
Finish Polyurethane Enamel
Connector BNC (female)
Environmental
Temparature -55ºC to +85ºC
Altitude 50,000 ft.
Air Speed 600 knots TAS @ 35,000 ft.
Federal Specifications
RTCA Environmental DO-160D
Environmental Category D2X]ACB[R(C,C1)U(F,F1)]
XWFDXSXXXXX[XX]X[XXXX]XAX
FAA TSO C37d, C38d
RTCA MOPS DO-186A
Order Options
Connector
BNC Standard
Color
White Standard
Gasket
  CI 10810 Cork Neoprene - Standard
Leading Edge Protection
  CI 108-1-L Minimum order required
