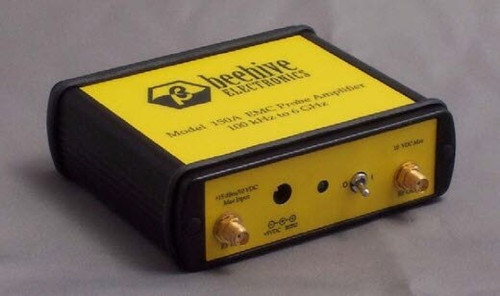

Beehive Electronics 150A EMC Probe Amplifier
Click To Enlarge

Beehive Electronics 150A EMC Probe Amplifier

Availability: Ready to Ship in 7 Business Days
International Orders
Part#: 150A
by Beehive Electronics
Our Price: $656.99
Quantity:
This 150A EMC probe amplifier is a low-noise, wide-bandwidth amplifier designed for use with the Beehive Electronics 100 series EMC probes.

The 150A is typically placed between the EMC probe and the spectrum analyzer. Its high gain and low noise improve the system sensitivity dramatically. This higher sensitivity allows the user to widen the spectrum analyzer resolution bandwidth, resulting in faster sweeps and measurements. Depending on the model of spectrum analyzer used, sensitivity can be improved by 20 to 30 dB.

Overall Rating for Beehive Electronics 150A EMC Probe Amplifier
(no reviews)Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
Product Details
Shipping Weight : 1 pounds
Manufacturer P/N : 150A
Features
  • High gain and low noise improves measurement sensitivity and speed.
  • Wide bandwidth allows it to be used with all 100 series probes.
  • RF input and output protected against ESD and DC power.
  • AC power supply included.
  • Standard 50 ohm inputs and outputs allow it to be used in any application requiring a low noise amplifier.
    • Specifications
    Port Characteristics

    Impedance: 50 ohms nominal
    Maximum Input Power: +15 dBm
    Maximum DC Voltage: +/- 10 VDC
    Connector: SMA Female

    Power

      DC Power Input: +9VDC, 150 mA
      Connector: DC power jack, 2mm center pin, positive center
      Universal power supply (100-240 VAC, 50/60 Hz) included

    Environmental

      Operating Temperature: 0°C to 55°C
      Storage Temperature: -20°C to 70°C

    Dimensions

      Height: 1.4"
      Width: 4.3"
      Depth: 4.2"

    Warranty

      1 year warranty
      30 day unconditional return policy
