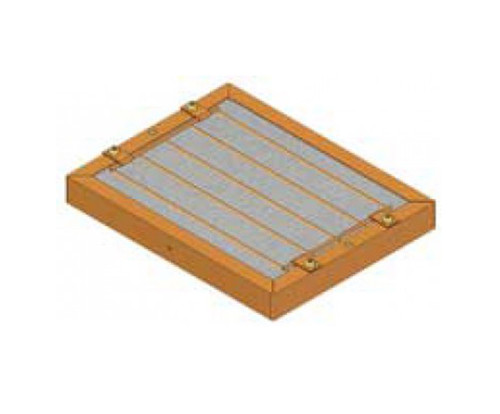

Brackett BA-8010 Filter Assembly
Click To Enlarge
Brackett BA-8010 Filter AssemblyBrackett BA-8010 Filter Assembly

Brackett BA-8010 Filter Assembly

Buy as a Whole Package & Save
Item #: BA8010
Our Price: $63.99
Or...Buy the pieces you need seperately!
Bundled ProductsLeadQtyAdd Ons
Brackett BA-8005 Element - For Filter Assembly BA-8010
Price: $9.99
3 Days
Certification
Brackett BA-8002 Gasket - For Filter Assembly BA-8010
Price: $9.99
N/A
Certification
Same Day Ship Guarantee
Add $2.99
Add a Certification
Add $10.00
This Brackett polyurethane air filter element has been designed to provide maximum dust collecting efficiency, non-restrictive air flow, and economical element replacement, while maintaining a lightweight filter. The element has been treated with a distinctive treatment called a wetted agent and is approximately 98% efficient. The wetted agent is an accompaniment in the efficient capturing of dust. In addition, the element has received a fire retardant treatment. For the above reasons, replace the element each 100 hours of use/12 months or when 50% covered with foreign material. DO NOT WASH AND REUSE.

NOTE: The expected shelf life of Brackett elements stored in their original packaging and out of direct sunlight is as follows: 4 years from date of manufacture listed on the front of the element packaging (EX: MFG MONTH/YEAR). This allows the element to be installed on an aircraft at the end of its shelf life.

Filter ManufacturerPart Number
Air Maze13814
AM106335FP
Cessna (IPC)070114
Overall Rating for Brackett BA-8010 Filter Assembly
(no reviews)Be the first to rate and review this item

Step 1: Remove existing filter assembly PN 0750114 and discard.
Step 2: Drill out the fasteners that held the original air filter in place.
Step 3: Bolt the frame onto the carburetor air box with 2 ea. MS35206-246 screws. Place PN BA-8007 washer plate over the place where the airlock fastener was removed and install 2 ea. AN365-832 nuts. Tighten until the neoprene gasket is approximately 1/2 compressed.
Step 4: Remove element BA-8005 from plastic bag. Install element into frame.
Step 5: Fasten grill PN BA-8001 onto frame with the 4 AN526-832-R6 screws.
Step 6: To replace future elements remove the grill with the 4 screws only.
Step 7: NOTE: After initial installation of filter assembly fill, out FAA Form 337 for return to service. On future replacement of parts this form will not be required.

Servicing: Under normal conditions, replace filter element, PN BA-8005 after 200 hours use or 1 year intervals. Under severely dusty conditions, check daily and replace when element is 50% covered with foreign material. For Continued Airworthiness Instructions, see Form I-194.

Manufacturer/AirplaneModel
Cessna180 (1953-55)
Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
Features
  • FAA-PMA approved—88 different models
  • Our patented treated foam has a 98% efficiency rating
  • You replace only the low cost throw-a-way element
  • Easy, accurate servicing by replacement at specified times
  • Readily available to all F.B.O.'s distributed by most major aircraft supply houses
  • Dual stage foam element increases dust holding capacity
  • It's a proven filter. Brackett Air Filters (formerly AC) have been in service on aircraft and helicopters since 1968. At present, Brackett Foam Filters are installed as Factory original equipment on 16 current production aircraft and four helicopters
  • Our Foam Filter is unaffected by water (approved for sea planes). It has no pleats to store dirt and is abrasive resistant
    • Specifications
  • Length: 9"
  • Width: 7 1/16"
  • Height: 1"
  • Weight: .86 lbs. (Approximate)
    • In The Box
    Assembly Part Numbers:
    Element BA-8005
    Gasket BA-8002
    Front Grill BA-8001
