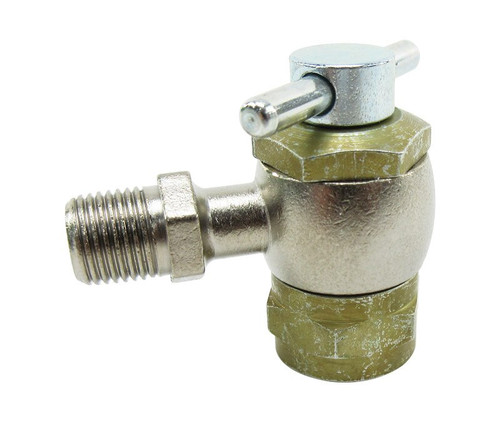

The Schrader USA 556 is designed to inflate and deflate the struts on your aircraft. This high pressure Schrader strut coupler attaches to the strut valve directly via its built-in core depressor pin. Attach the Schrader valve coupler to the valve threads by hand or with a wrench to form a perfect seal at up to 3,000 psi. This product features easy installation and simple use, ideal for handymen of all skill levels. The sturdy high pressure Schrader valve includes a copper sealing washer for fast installation. Sealing washers may need to be replaced after multiple uses to ensure proper sealing on valve mouth. At SkyGeek, we carry a complete line of landing gear parts and servicing tools for your aircraft. The inexpensive Schrader charging connector 556 includes five-star customer reviews. The Schrader coupler is a product you can trust, selected by our Geeks and approved by customers across the globe.
Lockheed Martin Corporation: 717770007-009
Naval Air Warfare Center: 520203-3
US Tank Automotive Command: 8687044
Overall Rating for Schrader 556 High Pressure Strut Coupler - 1/8" NPT Male - 3,000 PSIG
I ordered and received a genuine Schrader valve of good quality. There were cheaper knock-offs available for less money but I wanted the best.
Skygeek's web site showed clear photos and the order form was easy to use. I was happy to receive the exact valve I wanted, shipped where I needed and when I needed it. I couldn't ask for more than that.
February 4, 2014
This is the right tool
If you are servicing a light airplane strut this tool is essential the old brass goose neck tool lacks the features (Valve depressor) to do the job safely
December 17, 2012
Good quality item and was delivered on time
ProsVery good quality
September 20, 2012
Schrader high pressure coupler.
Great price, really fast delivery, well built and finished product.
ProsDoes the job on my Bonanza.
January 5, 2012
Exactly the coupler needed to dry nitrogen charge the Z-axis hydraulic counterbalance on my Haas CNC Milling Machine. Fast shipping as well!!!!
June 26, 2011
Fantastic nitrogen filling tool, very hard to find in New Zeland, Skygeek had in stock and shipped the next day, arrived in under a week, very pleased.
May 11, 2011
Hi this Schrader air chuck has a new use, i am using it to re-charge the fluid suspension on a range of BMC vehicles namely Austin 1800, super quality valve, great dealing with the Sky Geek team.
April 26, 2011
Schrader 556 High Pressure Coupler
great product, great price, quick delivery
April 1, 2011
Adjusting Strut Pressur
This coupler makes a very difficult job comparatively easy. Just be sure the valve compressor is backed out and screw on hand tight. Then screw in valve compressor and it is easy then to add or relieve pressure. Then the valve compressor is screwed out with no loss of pressure in strut. I use it for my tires as well.
ConsIf the connection for the hose was only 1/4" NPT then an adapter would not be needed. I guess the 1/8" is more common for high pressure needs but my cessna does not require high pressure.
December 4, 2010
mine d'or -
votre site est une mine d'or .
je n' ai pas trouvé de robinet de ce type en France
"Your site is a goldmine.
I 've found no such valve in France
thank you again"
Schrader 556 High Pressure Strut Coupler - 1/8" NPT Male - 3,000 PSIG
UOM : Each
Shipping Weight : 0.5 pounds
Manufacturer P/N :005560099
NSN : 4820-00-245-7699
ECCN : EAR99
Schedule B Code : 8481.90.9090
Alt. P/Ns : 8687044 HF2014
Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
Schrader USA Number: 556
Fits Thread Size: .305-32
Air Line Connection: 1/8" NPT Male
Max. Pressure Rating (PSIG): 3,000
Configuration: Air line connection 90 degrees to axis of valve
Recommended Max. Torque To Valve Mouth*: 50 in.-lb.
Remarks: Has core depressor pin, copper sealing washer
*It may be necessary to replace the sealing washers after a number of uses to insure sealing on valve mouth.
