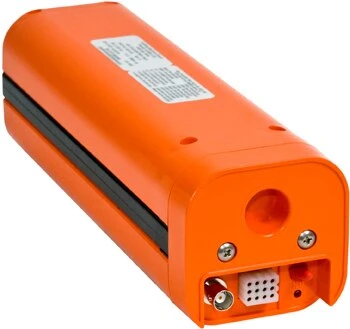

Artex 453-5003 Model C406-1 HM Helicopter 406 MHz Emergency Locator Transmitter
Click To Enlarge

Artex 453-5003 Model C406-1 HM Helicopter 406 MHz Emergency Locator Transmitter

Part#: 453-5003
Our Price: $2,993.08
Loading Item Availability: If this message doesn't go away please enable Javascript to see product Availability!
Quantity:
$15.00Add the Manufacturer's Certification:
Manufacturing
Country of Origin: USA
International Orders
Material Safety Information
Code: UN3090 | Class: 9 | Group: II - Details
Material Safety Data Sheet: MSDS1
Bulk Shop & Save
Not Applicable for this Product


The Artex 453-5003 C406-1 HM transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

The C406-1 HM has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-1 HM is available for use with Artex's low cost whip antennas, rod antenna or a blade antenna. The C406-1 HM may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-1 HM uses a single coax cable to accommodate all three frequencies. The C406-1 HM ELT is available for fixed wing with a single-directional G-Switch and helicopter (HM) applications with a multi-axis G-Switch. Immediate Search and Rescue response with completed registration.
Overall Rating for Artex 453-5003 Model C406-1 HM Helicopter 406 MHz Emergency Locator Transmitter
(based on 0 review)

Artex 453-5003 Model C406-1 HM Helicopter 406 MHz Emergency Locator Transmitter
$2,993.08

Product Details
UOM : Each
Shipping Weight : 5 pounds
Manufacturer P/N : 453-5003
ECCN : 7A994
Schedule B Code : 8529.90.4740
Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, SkyGeek.com and Styles Logistics, Inc. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.
Features
  • Model: C406-1 HM (Helicopter Model)
  • Antenna Options Available:
    110-340 Blade
    110-338 Rod
  • Operating Frequencies: 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X)
  • Output Power:
    406 MHz: 5 W +/- 2 dB (520 ms / 50 sec) for 24 hours @ -20°C
    121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20°C
  • Output Connector: BNC Female (121.5/243.0/406 MHz)
  • Activation:
    Automatic by 4.5 feet per second (2.3G) Primary G-Switch
    or 12.5 G (+/- 1 G) 5-Way HM G-Switch
    or Manual Activation
  • Battery: 5 year Lithium (LiMnO2, solid cathode)
  • Temperature Certified to:
    Operating: -20°C to +55°C
    Storage: -55°C to +85°C
  • Self Test:
    G-Switch Enabled
    406 MHz Power
    Antenna/Coax Connection
    Position Data Present
    Low Battery
  • Remote Switch: ON/ARM
  • Weights (with tray):
    ELT Transmitter: 3 lb 5.8 oz Maximum (1.53 kg)
    Mounting Tray: 7 oz (200 g)
    Total Weight: 4 lb 11 oz (2.02 kg)
  • Measurements (with mounting hardware):
    11.74” (298 mm)L
    3.9” (99 mm)H
    3.82” (97 mm)W

  • Certifications
    TSO C126
    ETSO 2C126
    Cospas/Sarsat Approved
    Transport & Industry Canada Approved
