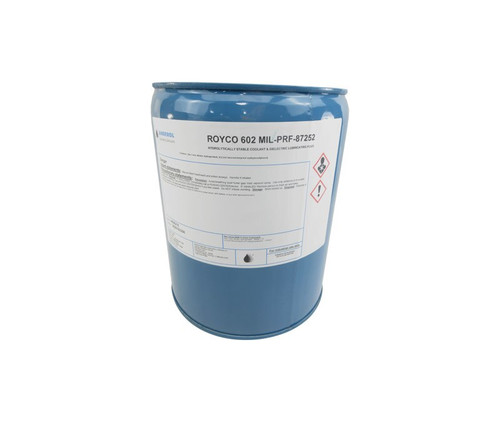

ROYCO® 602 Coolant Fluid, Hydrolytically Stable, Dielectric - 5 Gallon
Click To Enlarge

ROYCO® 602 Coolant Fluid, Hydrolytically Stable, Dielectric - 5 Gallon

Availability: In Stock and Ready to Ship!
International Orders
Part#: 602-5GL
Our Price: $489.99
$2.99Guarantee your order ships out today (US ONLY)
$10.00Add the Manufacturer's Certification:
Material Safety Data Sheets (MSDS): MSDS1
Quantity:
This synthetic based fluid is composed of a highly branched, compact, and very stable synthetic hydrocarbon known as polyalphaolefin (PAO). Modern technology additives are provided to provide long-term storage stability. ROYCO 602 offers exceptional performance over a wide temperature range and does not react with water, resulting in cleaner operating systems and longer component life. ROYCO 602 is recommended for use as a dielectric cooling fluid for aircraft avionics systems, high-powered transmitter equipment and power supplies, as well as many ordnance systems. It may also be considered for use in electronics cooling systems such as circulating computer coolant systems. Benefits include lower initial cost, longer fluid life, lower weight, and lower toxicity when compared to other types of avionic coolants. Since ROYCO 602 does not react with water, no specialized reclamation equipment is required and there may be less environmental impact potential in the event of a spill.
ROYCO® 602 is recommended for use as a dielectric cooling fluid for aircraft avionics systems, high-powered transmitter equipment and power supplies, as well as many ordnance systems. ROYCO® 602 may also be considered for use in electronics cooling systems such as circulating computer coolant systems. Benefits include lower initial cost, longer fluid life, lower weight, and lower toxicity when compared to other types of avionic coolants. Since ROYCO® 602 does not react with water, no specialized reclamation equipment is required and there may be less environmental impact potential in the event of a spill.
Overall Rating for ROYCO® 602 Coolant Fluid, Hydrolytically Stable, Dielectric - 5 Gallon
(no reviews)Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
Product Details
Unit Size : 5 Gallon
Shipping Weight : 37.15 pounds
Manufacturer P/N : 602-5GL
Schedule B Code : 3403990000
Military Standard : MIL-PRF-87252C
Approvals : MIL-C-87252
Specifications
Properties Test Method ROYCO 602
Gravity, API API 45.3
Specific Gravity, 15.6°C ASTM D1298 >0.7999
Kinematic Viscosity, cSt
@ 100°C
@40°C
@ -40°C
@ -54°C
ASTM D445
1.72
5.19
277
1087
Viscosity Index ASTM D2270 145
Pour Point, °F ASTM D97 -100
Total Acid Number, mg KOH/g ASTM D664 <0.01
Flash Point, °C ASTM D92 158
Fire Point, °C ASTM D92 175
Evaporation, 400°F, 6.5 hrs, % ASTM D972 17
Water Content, ppm ASTM D1744 <30
Density, gm/cc
@ 0°C
@ 100°C
@ 190°C
Dilatometer
0.8058
0.7392
0.6768
Specific Heat, Cp, cal/g-°C
@ -17.8°C
@ 37.8°C
@ 149°C
@ 260°C
ASTM D2766
0.49
0.54
0.63
0.72
Thermal Conductivity, cal/hr/cm^2 (°C/cm)
@ -17.8°C
@ 37.8°C
@ 149°C
@260°C

1.26
1.21
1.12
1.02
Coefficient of Thermal Expansion, 1/°C
0-50°C
50-100°C
100-150°C
150-190°C
Dilatometer
0.00083
0.00092
0.00103
0.00117
Dielectric Constant, 400 Hz 50
Power Factor, 400 Hz <0.0001
Dielectric Breakdown Voltage, KV ASTM D877 50
Volume Resistivity, ohm-cm ASTM D1169 2.9 x 10^15
Particulates Automated Counter Pass
