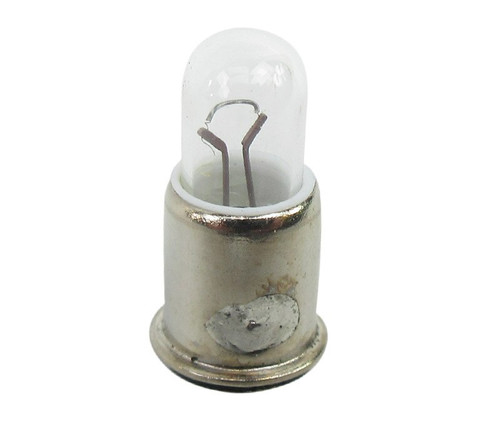

General Electric 328 Miniature Lamp - MS25237-238
Click To Enlarge
General Electric 328 Miniature Lamp - MS25237-238General Electric 328 Miniature Lamp - MS25237-238General Electric 328 Miniature Lamp - MS25237-238General Electric 328 Miniature Lamp - MS25237-238

General Electric 328 Miniature Lamp - MS25237-238

Availability: In Stock and Ready To Ship!
International Orders
Part#: GE-328
by GE Lighting
Our Price: $0.58
I Want All Extra Services
$2.99Guarantee your order ships out today (US ONLY)
$10.00Add the Manufacturer's Certification:
Quantity:
General Characteristics
Lamp Type Miniature - T & TL Shape
Bulb T1.75 (T1 3/4)
Base Single Contact Midget Flanged
Filament C-2R
Wattage 1
Voltage 6
Voltage (MIN) 1000
Rated Life 1000 hrs
Rated Life (MIN) 1 hrs
Rated Life (Hor) 1 hrs
Rated Life (Vert) 1000 hrs
Atmosphere Vacuum
Primary Application Aircraft; Low Voltage

Photometric Characteristics
Initial Lumens 4
Initial Lumens (Hor) 4
Initial Lumens (Vert) 4
Nominal Initial Lumens per Watt 4
Central Beam Candlepower (CBCP) 4
Mean Spherical Candlepower (MSCP) 0.34

Dimensions
Maximum Overall Length (MOL) 0.6300 in (16.0 mm)
Bulb Diameter (DIA) 0.219 in (5.5 mm)
Light Center Length (LCL) 0.380 in (9.6 mm)

Product Information
Product Code 28546
Description 328
ANSI Code 328
Standard Package Case
Standard Package GTIN 200043168285463
Standard Package Quantity 50

Overall Rating for General Electric 328 Miniature Lamp - MS25237-238
(no reviews)Be the first to rate and review this item

Your question might already be answered below, wouldn't that be a time saver!
If your question has not been answered below please click the "Ask a Question" button below, fill out the form, and one of our Geeks will answer it as quickly as possible.

Note: Our Geeks are available Monday-Friday 9AM to 5PM (EST) normal business days, to respond to your questions.
Product Details
Shipping Weight : 0.2 pounds
Manufacturer P/N : GE-28546
UPC : 043168285463
EAN : 0043168285463
Schedule B Code : 8539292500
Alt. P/Ns : 11-04181
