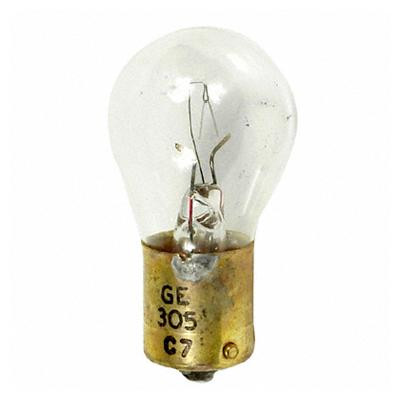

GE305 / 26143 Single Contact Bayonet Lamp

GE305 / 26143 Single Contact Bayonet Lamp
GE305 / 26143 Single Contact Bayonet LampGE305 / 26143 Single Contact Bayonet LampGE305 / 26143 Single Contact Bayonet LampGE305 / 26143 Single Contact Bayonet Lamp
Calculate Shipping Costs
Item #:305
Availability:
Usually ships the same business day.
Guarantee your order ships out today (US ONLY)
($2.99):   Yes   No
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
Item Rating:
Price:$2.43
Add the Manufacturer's Certification:
$10.00
Quantity:
Send Page to Friend
GENERAL CHARACTERISTICS
Lamp type Miniature - S Shape
Bulb S8
Base Single Contact Bayonet (BA15s)
Filament C-2V
Wattage 14
Voltage 28
Voltage (MIN) 300
Rated Life 300 hrs
Rated Life (MIN) 14 hrs
Rated Life (Hor) 14 hrs
Rated Life (Vert) 300 hrs
Bulb Material Lead glass
Atmosphere Gas-filled
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 188
Initial Lumens (Hor) 13.42857
Initial Lumens (Vert) 188
Nominal Initial Lumens per Watt 13
Center Beam Candlepower (CBCP) 188
Mean Spherical Candlepower (MSCP) 15
DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.000 in (25.4 mm)
Light Center Length (LCL) 1.120 in (28.4 mm)
PRODUCT INFORMATION
Product Code 26143
Description 305
ANSI Code 305
Standard Package Case
Standard Package GTIN 00043168261432
Standard Package Quantity 50
