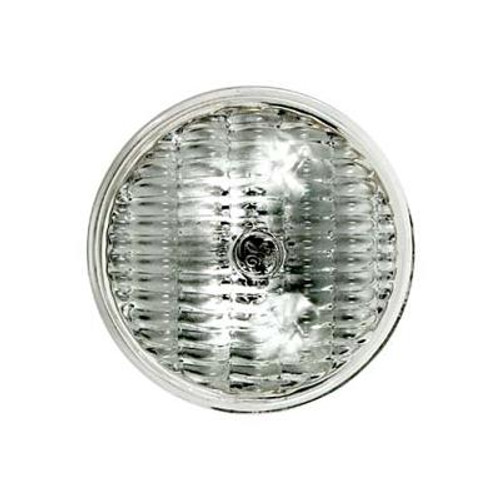

GE4627 / 24966 Sealed Beam Aircraft Lamp

GE4627 / 24966 Sealed Beam Aircraft Lamp
GE4627 / 24966 Sealed Beam Aircraft LampGE4627 / 24966 Sealed Beam Aircraft LampGE4627 / 24966 Sealed Beam Aircraft LampGE4627 / 24966 Sealed Beam Aircraft LampGE4627 / 24966 Sealed Beam Aircraft Lamp
Calculate Shipping Costs
Item #:4627
Availability:
Usually ships the same business day.
Guarantee your order ships out today (US ONLY)
($2.99):   Yes   No
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
Item Rating:
Price:$39.58
Add the Manufacturer's Certification:
$10.00
Quantity:
Send Page to Friend
GENERAL CHARACTERISTICS
Lamp type Sealed Beam - PAR
Bulb PAR36
Base Screw Terminals
Filament CC-6
Product Technology Incandescent
Wattage 100
Voltage 28
Rated Life 300 hrs
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS
Beam Spread - Horizontal 80° - 10 %
Beam Spread - Vertical 30° - 10 %
Max. Beam Candlepower (MBCP) (MAX) 3000
DIMENSIONS
Maximum Overall Length (MOL) 2.7500 in (69.8 mm)
Bulb Diameter (DIA) 4.500 in (114.3 mm)
PRODUCT INFORMATION
Product Code 24966
Description 4627
ANSI Code 4627
Standard Package Case
Standard Package GTIN 10043168249666
Standard Package Quantity 12
