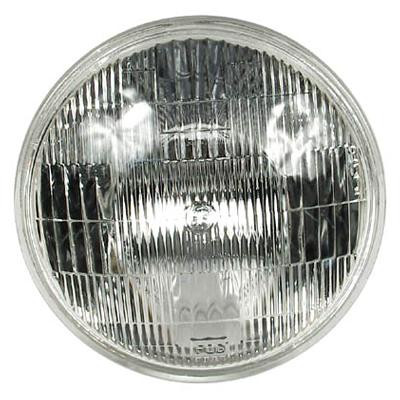

GE4570 / 24828 Sealed Beam Aircraft Lamp

GE4570 / 24828 Sealed Beam Aircraft Lamp
GE4570 / 24828 Sealed Beam Aircraft LampGE4570 / 24828 Sealed Beam Aircraft LampGE4570 / 24828 Sealed Beam Aircraft LampGE4570 / 24828 Sealed Beam Aircraft LampGE4570 / 24828 Sealed Beam Aircraft Lamp
Calculate Shipping Costs
Item #:4570
Availability:
Usually ships the same business day.
Guarantee your order ships out today (US ONLY)
($2.99):   Yes   No
(Order must be placed by 3PM Eastern on any business day. Does not include shipping costs)
Item Rating:
Price:$15.71
Add the Manufacturer's Certification:
$10.00
Quantity:
Send Page to Friend
GENERAL CHARACTERISTICS
Lamp type Sealed Beam - PAR
Bulb PAR46
Base Screw Terminals
Filament CC-6
Product Technology Incandescent
Wattage 150
Voltage 28
Rated Life 300 hrs
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS
Beam Spread - Horizontal 50° - 10 %
Beam Spread - Vertical 9° - 10 %
Max. Beam Candlepower (MBCP) (MAX) 32000
DIMENSIONS
Maximum Overall Length (MOL) 3.7500 in (95.2 mm)
Bulb Diameter (DIA) 5.750 in (146.0 mm)
PRODUCT INFORMATION
Product Code 24828
Description 4570
ANSI Code 4570
Standard Package Case
Standard Package GTIN 00043168248280
Standard Package Quantity 12
